Description

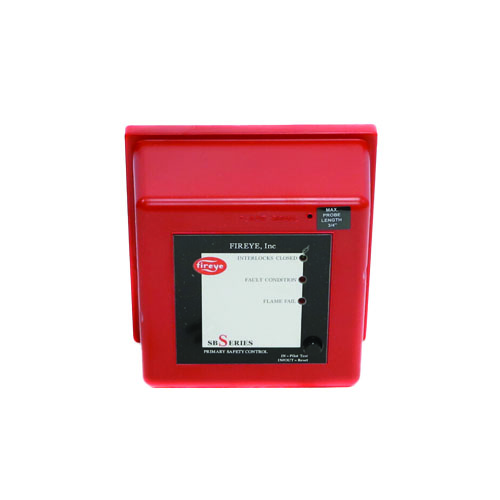

The Fireye SB560533AA is a professional-grade SB Series burner management and flame safeguard control engineered for safe ignition sequencing and continuous flame supervision in industrial combustion systems. Operating on 120 VAC, this controller is designed for flame rod (flame rectification) detection, delivering dependable flame verification for gas and oil burners in boilers, furnaces, and process heating equipment.
This model features a selectable 5 or 10 second trial-for-ignition (TFI) period and a no purge configuration, ideal for applications where purge control is handled externally or is not required by the system design. Internal microprocessor logic manages ignition timing, flame proving, and safety lockout functions, while built-in LED status indicators provide fast, clear diagnostics in the field. The plug-in modular design is fully compatible with Fireye SB wiring bases, making installation, servicing, and module replacement quick and straightforward.
Key Features
- 120 VAC SB Series flame safeguard control for industrial burner applications
- Flame rod (flame rectification) sensing input for reliable flame detection
- Selectable 5 or 10 second trial-for-ignition (TFI) period
- No purge sequence configuration — purge managed externally or not required
- Microprocessor-controlled ignition timing, flame proving, and safety lockout
- LED status indicators for rapid on-site diagnostics
- Plug-in modular design for fast field replacement
- Compatible with Fireye SB Series wiring bases
- Suitable for industrial boilers, furnaces, and process burner systems
