Description

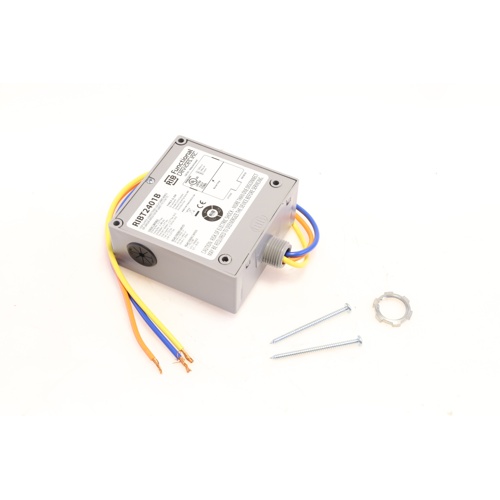

The Functional Devices RIBT2401B is a robust enclosed relay designed for dependable switching in HVAC, building automation, and light commercial control applications. Featuring a 24VAC/DC coil, this relay accepts the standard 24-volt control signal found throughout HVAC systems and uses it to switch 120V loads at up to 20 amps — making it well-suited for controlling fans, pumps, compressors, lighting circuits, and other line-voltage equipment.
The RIBT2401B is part of Functional Devices’ industry-trusted RIB® (Relay in a Box) product line, recognized for its compact, self-contained enclosure that simplifies installation and protects internal components. The SPDT (Single Pole Double Throw) contact configuration provides both normally open (NO) and normally closed (NC) switching flexibility, allowing the relay to be wired for a wide range of control sequences.
Key Features
- Coil voltage: 24VAC/DC — compatible with standard HVAC control circuits
- Load voltage: 120V AC
- Load current rating: 20 amps
- Contact configuration: SPDT (Single Pole Double Throw) — includes NO and NC contacts
- Enclosed design: self-contained enclosure for clean, protected installation
- Compact RIB® form factor — mounts easily in panels, junction boxes, or on DIN rail
- Ideal for HVAC, BAS, and light commercial control applications
Typical Applications
- Fan and blower motor switching
- Pump and compressor control
- Lighting and load control circuits
- Building automation system (BAS) output interfaces
- General 120V load switching from low-voltage control signals
Why Choose the RIBT2401B?
Functional Devices RIB® relays are a go-to solution for HVAC technicians and controls contractors who need reliable, code-compliant relay switching in a convenient enclosed package. The 20A contact rating provides ample capacity for most HVAC loads, while the SPDT configuration ensures maximum wiring flexibility. The enclosed housing eliminates the need for a separate enclosure in many installations, saving time and material costs on the job.
