$50.18
20A Enclosed Relay and AC Sensor Combo
Ships By October 22

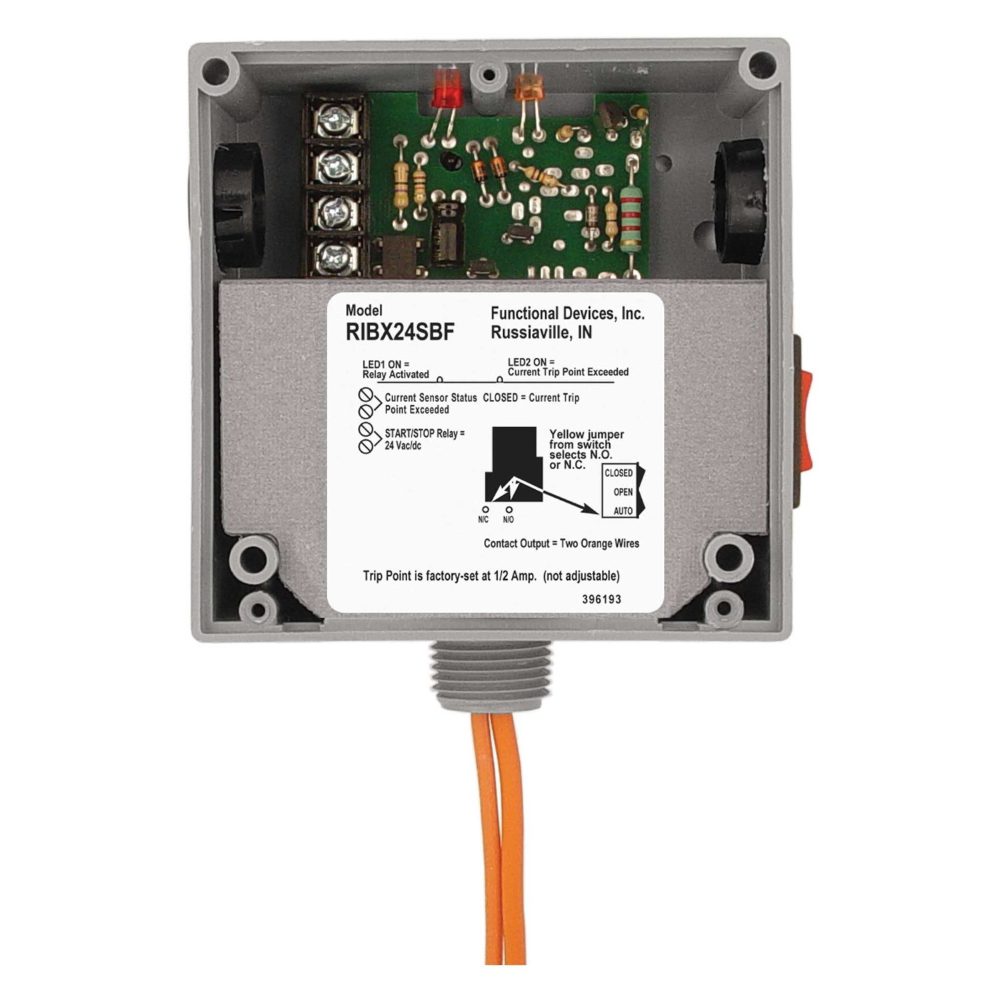

The Functional Devices RIBX24SBF is an enclosed 20 amp relay and AC sensor combination with a 24Vac/dc coil. By using a Functional Devices relay-in-a-box you save time, trouble and the expense of buying and installing seperate components by being able to install all of the critical components you need easily and at once.
| Relay Type | Internal w/ contact status |
|---|---|
| Operating Temperature | -30?F to 140?F |
| Humidity Range | 5 to 95% (noncondensing) |
| Operate Time | 20ms |
| Wires | 16", 600V Rated |
| Relay Status | Red LED On = Activated |
| Override Switch | Yes |
| Dimensions | 4" x 4" x 1.8" with .50" NPT Nipple |
| Gold Flash | No |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Coil Current | 50 mA @ 18 VAC 83 mA @ 24 VAC 33 mA @ 22 VDC 35 mA @ 24 VDC 47 mA @ 30 VDC |
| Coil Voltage Input | 24V AC/DC ; 50-60 Hz Drop Out = 3 VAC / 3.8 VDC Pull In = 18 VAC / 22 VDC |
| Resistance | 20 Amp |
| Sensor Range | .50-20 Amp |
| Voltage | 24V AC/DC |
