Description

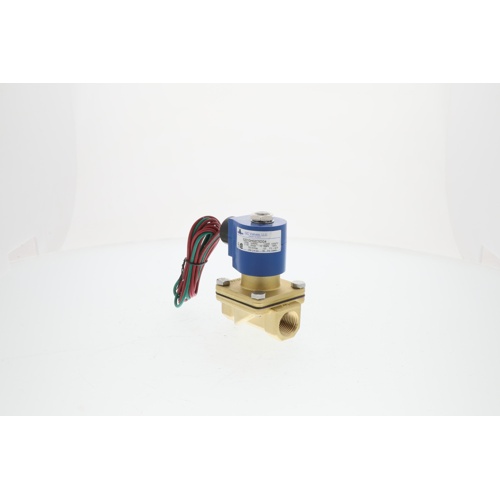

The GC Valves S201GH02C5DG4 is a heavy-duty, normally closed solenoid valve engineered for reliable fluid control in demanding HVAC, refrigeration, and industrial applications. Built with a durable brass body and a 5/8″ orifice, this valve delivers consistent, leak-free performance across a wide range of media and operating conditions.
Key Features
- Normally Closed (NC) operation — valve closes automatically when de-energized for fail-safe performance
- Brass body construction for corrosion resistance and long service life
- 1/2″ NPT port connections for straightforward installation into standard piping systems
- 5/8″ orifice for optimized flow capacity
- Class H coil insulation rated for high-temperature environments
- 120Vac operating voltage for compatibility with standard commercial and industrial power supplies
- EPR (Ethylene Propylene Rubber) seal material — excellent resistance to water, steam, and many chemical media
Specifications
- SKU: S201GH02C5DG4
- Brand: GC Valves
- Body Material: Brass
- Connection Size: 1/2″ NPT
- Orifice Size: 5/8″
- Operation: Normally Closed
- Coil Class: H (High Temperature)
- Voltage: 120Vac
- Seal Material: EPR (Ethylene Propylene Rubber)
Applications
- HVAC water and steam control systems
- Refrigeration and cooling circuits
- Industrial fluid and gas control
- Hot water and process piping systems
The Class H coil rating ensures the S201GH02C5DG4 can withstand elevated ambient and media temperatures without coil degradation, making it an ideal choice for boiler rooms, mechanical rooms, and other high-heat environments. The EPR seal material provides excellent compatibility with hot water, steam, and a broad range of chemical fluids, reducing the risk of seal failure and unplanned downtime.
