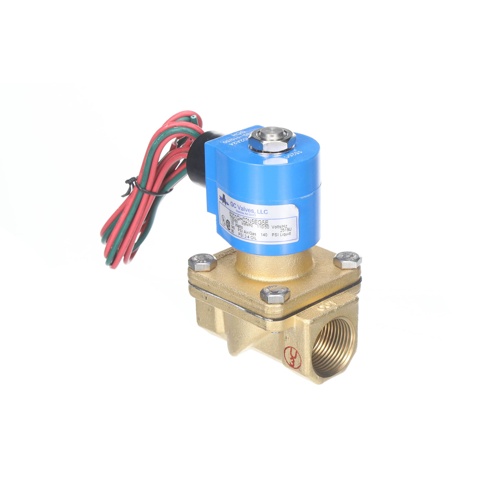

GC Valves S201GH02N5EG5E 3/4″ N/C Solenoid Valve 120V 0-140 PSI Air/Water

Description

The GC Valves S201GH02N5EG5E is a 3/4-inch normally closed (N/C) solenoid valve engineered for dependable, automatic shut-off control in commercial and industrial HVAC, plumbing, and fluid-handling applications. Designed to handle both air and water media, this valve delivers consistent performance across a wide operating pressure range, making it a versatile choice for a variety of system configurations.

Key Features

• 3/4″ pipe connection for straightforward installation into standard piping systems
• Normally Closed (N/C) operation — valve closes automatically when de-energized for fail-safe system protection
• 120V AC coil voltage for compatibility with standard commercial control circuits
• Operating pressure range: 0–140 PSI, suitable for a broad range of air and water service applications
• Dual-media rated for both air and water service
• Robust construction designed for long service life in demanding HVAC and mechanical system environments

Application

The S201GH02N5EG5E is ideal for use in HVAC systems, hydronic heating and cooling circuits, compressed air lines, and water distribution systems where automatic, electrically actuated shut-off control is required. Its normally closed design ensures the flow path is secured whenever the valve is not energized, providing an added layer of safety and system integrity.

Specifications

• Brand: GC Valves
• SKU: S201GH02N5EG5E
• Connection Size: 3/4″
• Operation: Normally Closed (N/C)
• Coil Voltage: 120V AC
• Pressure Range: 0–140 PSI
• Media: Air / Water
