Description

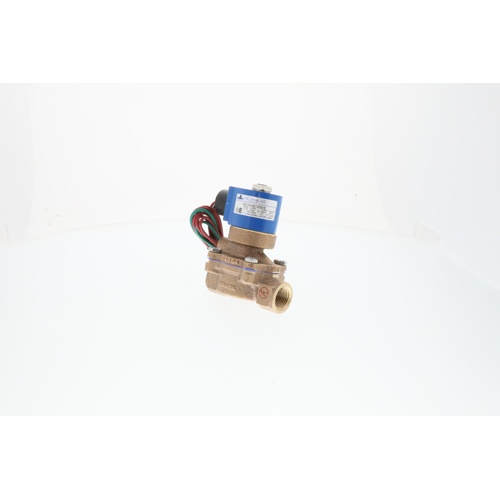

The GC Valves S211GH02T2DG1E is a heavy-duty, normally closed solenoid valve engineered for reliable fluid control in demanding HVAC, industrial, and commercial applications. Built with a durable brass body and a 1/2″ NPT connection, this valve delivers consistent, leak-free performance across a wide range of media and system configurations.
Key Features
- Normally Closed (NC) operation — valve closes automatically upon power loss for fail-safe system protection
- Brass body construction for excellent corrosion resistance and long service life
- 1/2″ NPT inlet and outlet connections for straightforward installation into standard piping systems
- 1/2″ orifice for efficient, controlled flow
- Class H coil insulation rated for high-temperature environments, ensuring coil longevity and reliability
- 120Vac operating voltage — compatible with standard North American electrical supply
- Teflon (PTFE) seal material provides superior chemical resistance and compatibility with a broad range of fluids
Specifications
- SKU: S211GH02T2DG1E
- Brand: GC Valves
- Connection Size: 1/2″ NPT
- Orifice Size: 1/2″
- Body Material: Brass
- Seal Material: Teflon (PTFE)
- Operation: Normally Closed (NC)
- Coil Class: H (High Temperature)
- Voltage: 120Vac
Applications
- HVAC hydronic systems and water control
- Steam and hot water service
- Industrial fluid control and process automation
- Refrigeration and cooling systems
- Commercial plumbing and mechanical systems
The Class H coil rating makes this solenoid valve especially well-suited for high-temperature service environments where standard coil ratings may fall short. The Teflon seal material ensures compatibility with a wide variety of fluids, including water, steam, air, and many chemical media. Trust the GC Valves S211GH02T2DG1E for dependable, long-lasting automated valve control in your next project.
