Description

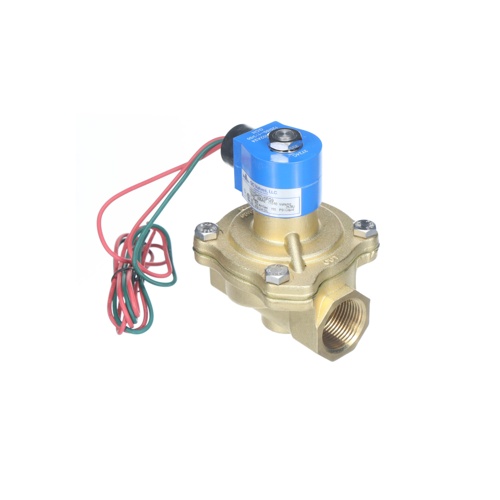

The GC Valves S211GH02V5FG9 is a 1-inch normally closed (N/C) solenoid valve designed for dependable on/off fluid control in demanding HVAC, industrial, and process applications. Engineered with Viton trim seals, this valve delivers excellent chemical resistance and durability when handling a wide range of media including oils, fuels, and aggressive fluids. The normally closed design ensures the valve remains shut when de-energized, providing a fail-safe default position ideal for safety-critical systems.
Key Features
- 1-inch pipe connection for straightforward installation into standard piping systems
- Normally closed (N/C) operation — valve closes automatically when power is removed
- 120V AC coil voltage for compatibility with standard commercial and industrial electrical systems
- Viton (FKM) trim seals for superior resistance to chemicals, oils, and elevated temperatures
- Robust solenoid construction built for long service life and reliable cycling
- Suitable for use in HVAC, refrigeration, water, oil, and light fuel applications
Specifications
- SKU: S211GH02V5FG9
- Brand: GC Valves
- Connection Size: 1 inch
- Valve Action: Normally Closed (N/C)
- Coil Voltage: 120V AC
- Seal Material: Viton (FKM) Trim
Applications
- HVAC water and fluid control systems
- Industrial process piping
- Oil and fuel handling systems
- Refrigeration and cooling circuits
- Chemical-resistant fluid control where Viton sealing is required
The GC Valves S211GH02V5FG9 is a trusted solution for professionals who require a reliable, chemically resistant solenoid valve with standard 120V operation. Its Viton trim construction makes it especially well-suited for applications where standard elastomers would degrade prematurely.
