Description

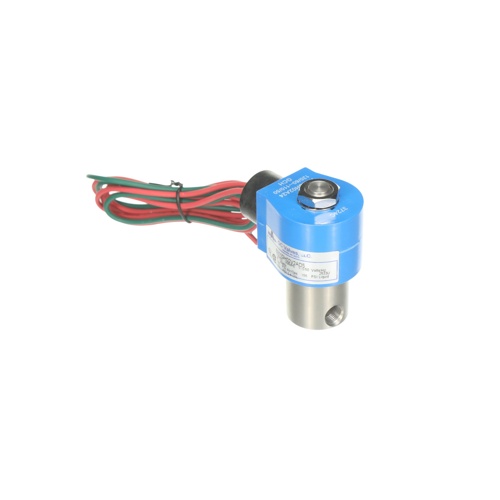

The GC Valves S311GH02V2AD5 is a 1/8″ NPT, normally closed (N/C) solenoid valve engineered for reliable fluid control in demanding HVAC, industrial, and mechanical system applications. Built with a stainless steel body for superior corrosion resistance, this valve is rated for use with air, water, and oil media, making it a versatile solution across a wide range of system types.
Key Features
- 1/8″ NPT port size for compact inline installation
- Normally Closed (N/C) operation — valve closes automatically when de-energized for fail-safe performance
- 120V AC coil voltage for standard commercial and industrial power compatibility
- Stainless steel body construction for excellent corrosion and chemical resistance
- Operating pressure range: 0–155 PSI
- Compatible media: Air, Water, and Oil
Applications
- HVAC fluid control systems
- Compressed air lines
- Water and oil flow shutoff applications
- Industrial process control
- OEM equipment integration
Specifications
- Brand: GC Valves
- SKU: S311GH02V2AD5
- Port Size: 1/8″ NPT
- Coil Voltage: 120V AC
- Valve Action: Normally Closed (N/C)
- Body Material: Stainless Steel
- Pressure Range: 0–155 PSI
- Compatible Media: Air, Water, Oil
