Description
Overview

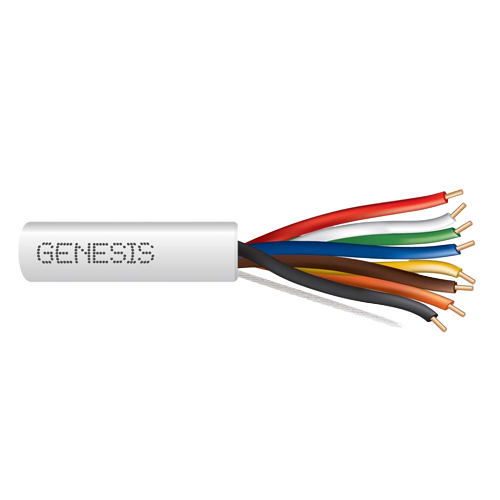

Engineered specifically for the power and communication demands of modern thermostat installations, the Genesis TWP-18/8 plenum-rated thermostat wire delivers reliable performance in both new and existing HVAC systems. Its plenum rating makes it the code-compliant choice for air-handling spaces where fire safety and smoke propagation standards are critical.
Key Features
- 18 AWG solid conductor construction for consistent signal and power delivery
- 8-conductor configuration supports complex thermostat and HVAC control wiring
- Plenum-rated (CMP) — safe for installation in air-handling plenums and ducts
- Compatible with new energy-efficient HVAC equipment and legacy systems
- Conveniently packaged on a 500ft reel for large installations and commercial jobs
Specifications
- SKU: TWP-18/8_500
- Part Number: 47665012
- Gauge: 18 AWG
- Conductors: 8
- Conductor Type: Solid
- Rating: Plenum (CMP)
- Reel Length: 500 feet
Ideal Applications
- Thermostat control wiring in commercial and residential HVAC installations
- Air-handling plenum spaces requiring fire-rated cable
- Multi-stage heating and cooling systems requiring multiple conductors
- New construction and retrofit HVAC projects
