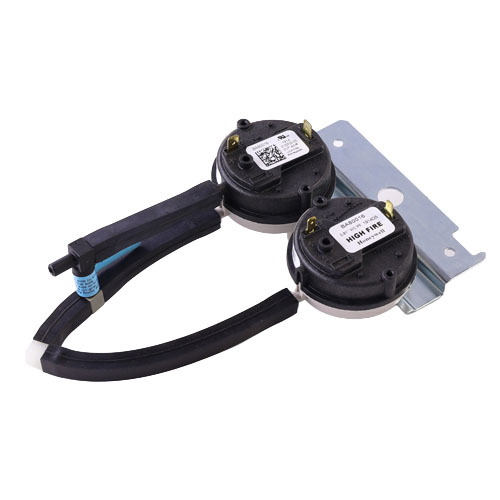

Goodman 0130F00155 0.81″wc 1/4″ Barbed SPST Pressure Switch

Description

Goodman OEM Replacement Pressure Switch — 0130F00155

The Goodman 0130F00155 is a factory-replacement pressure switch engineered for precise draft and combustion air monitoring in Goodman gas furnaces. With a calibrated set point of 0.81″ water column (w.c.) and a Single-Pole Single-Throw (SPST) switching configuration, this switch opens or closes the control circuit in direct response to the pressure generated by the inducer blower, helping to ensure safe furnace operation on every cycle.

Key Features

• OEM Goodman replacement part — ensures proper fit and reliable performance
• Set point: 0.81″ w.c. — factory-calibrated for accurate pressure sensing
• Connection type: 1/4″ barbed port — for secure hose attachment to the pressure tap
• SPST switching configuration — single-pole single-throw for straightforward circuit control
• Monitors inducer blower operation to verify adequate draft before allowing ignition
• Protects against unsafe combustion conditions caused by blocked flue, failed inducer, or restricted venting
• Direct OEM replacement — no modification required for compatible Goodman furnace models

How It Works

The pressure switch is connected via a rubber hose to the inducer housing or collector box. When the inducer motor runs and creates the correct negative pressure (at or beyond the 0.81″ w.c. set point), the SPST switch closes, signaling the furnace control board to proceed with the ignition sequence. If adequate pressure is not detected — indicating a potential venting or inducer problem — the switch remains open and the furnace is prevented from firing, protecting both the equipment and the occupants.

Application

• Designed for use in Goodman brand gas furnaces requiring a 0.81″ w.c. pressure switch
• Ideal for service technicians performing routine maintenance, diagnostic replacement, or warranty repair
• Always verify compatibility with the specific furnace model number before installation

Why Choose the Goodman 0130F00155?

Using the correct OEM pressure switch ensures the furnace safety system operates exactly as designed. Aftermarket substitutes may carry slightly different set points or connection sizes, leading to nuisance lockouts or, worse, unsafe operation. The Goodman 0130F00155 delivers the precise calibration and connection geometry your equipment demands.
