Goodman CAPTA AlumaFin7 Cased Evaporator Coil | Upflow/Downflow | Internal TXV | R-32 | Multiple Sizes

Description

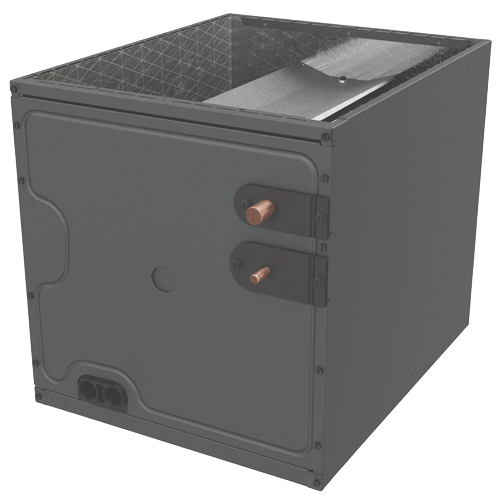

The Goodman CAPTA is a cased, all-aluminum AlumaFin7™ evaporator coil for upflow or downflow applications, available in 1.5 to 5-ton sizes with multiple cabinet width options to fit different furnace or air handler cabinets at the same tonnage. It’s designed for use with Goodman gas furnaces, split system air conditioners, heat pumps, and modular two-piece blowers.

At the core is a factory-installed thermal expansion valve (TXV) for precise refrigerant metering in both cooling and heat pump applications, suited to high-performance matched systems. The all-aluminum construction — sine fins, grooved tubes, tubing, fins, and end plates in one metal — maximizes surface area and heat transfer efficiency, and a factory-installed R-32 sensor is designed for the lifespan of the coil. Every coil is pressure-tested twice before leaving the factory.

The compact 21″ depth eases installation in attic spaces, with a single front access panel for straightforward service, and foil-faced insulation covers the internal casing to reduce cabinet condensation. A rust-resistant, UV-resistant, DecaBDE-free thermoplastic drain pan features a low water-retention design with secondary drain connections, and drain pan rails allow coils to be removed and repositioned with ease. The cabinet has a galvanized, leather grain-embossed finish.

Designed, engineered, and assembled in the USA. AHRI Certified, ETL Listed. Backed by a 10-year parts limited warranty when registered online within 60 days of installation (registration is not required in California or Québec, and warranty duration may differ in Texas and Florida). This product is designed for use with A2L (R-32) appliances only, and is not for use in R-410A system installation or repair — a refrigerant leak detection kit (Model 0230K00044) may be required when paired with a non-A2L furnace.

Select the correct tonnage and cabinet width below based on your matched furnace or air handler and outdoor unit.

Features:

• Cased, all-aluminum AlumaFin7™ evaporator coil — available in 1.5, 2, 2.5, 3, 3.5, and 5-ton, with multiple cabinet widths

• Upflow or downflow configuration

• Factory-installed thermal expansion valve (TXV) for cooling and heat pump applications

• All-aluminum construction with sine fins and grooved tubes

• Factory-installed R-32 sensor rated for coil lifespan

• Double factory pressure-tested before shipping

• 21″ depth for easier attic access; single front access panel

• Foil-faced insulation to reduce cabinet condensation

• Galvanized, leather grain-embossed cabinet finish

• Rust-resistant, UV-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connections

• Drain pan rails for easy coil removal/repositioning

• Designed for A2L/R-32 appliances only — not for R-410A installation or repair

• AHRI Certified | ETL Listed | Made in USA

• 10-year parts limited warranty (registration required; varies by state/province)
