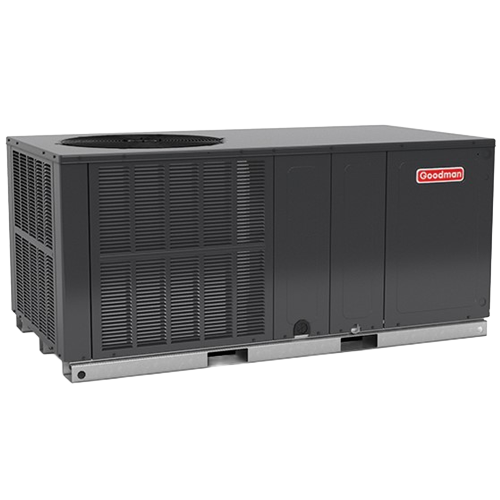

Goodman GPHH5 15.2 SEER2 Packaged Heat Pump | Horizontal | R-32 Refrigerant | Multiple Sizes

Description

The Goodman GPHH5 is an all-in-one packaged heat pump rated at 15.2 SEER2 and 6.7 HSPF2, available in 2 to 5-ton sizes, built specifically for horizontal ductwork installations with quiet horizontal discharge. It combines the cooling and heating sections into a single, fully charged cabinet — with no separate indoor and outdoor units — for straightforward ground-level or rooftop installation, and can be paired with a field-installed electric heat kit for supplemental heating.

At the core is a high-efficiency scroll compressor — single-stage on the smaller sizes and two-stage on the 3.5 to 5-ton units for better part-load efficiency — paired with a multi-speed ECM indoor blower motor that circulates air efficiently and quietly. Copper tube/aluminum fin condenser coils and an all-aluminum evaporator coil deliver reliable heat transfer, and a totally enclosed, permanently lubricated condenser fan motor adds to long-term durability.

The heavy-gauge galvanized-steel cabinet has an attractive Architectural Gray powder-paint finish, louvered condenser coil protection, and aluminum foil-facing internal insulation reinforced with fiberglass scrim. The fully insulated blower compartment includes convenient access panels, and the cabinet meets air leakage requirements when tested to ASHRAE Standard 193 — less than 2.0% at 1.0 in. H2O, and less than 1.4% at 0.5 in. H2O.

Designed, engineered, and assembled in the USA. AHRI Certified, ETL Listed. Backed by a 10-year parts limited warranty, requiring online registration within 60 days of installation (registration requirements vary by state).

Select the correct tonnage below based on your Manual J load calculation and ductwork configuration.

Features:

• 15.2 SEER2 / 6.7 HSPF2 packaged heat pump — available in 2 to 5-ton sizes

• Horizontal-discharge-only design — quiet operation for rooftop or slab installs

• High-efficiency scroll compressor — single-stage on smaller sizes, two-stage on 3.5–5 ton

• Multi-speed ECM indoor blower motor

• Copper tube/aluminum fin condenser coil; all-aluminum evaporator coil

• Totally enclosed, permanently lubricated condenser fan motor

• Fully charged system; R-32 refrigerant

• Electric heat kit available as a field-installed option

• Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-paint finish

• Louvered condenser coil protection; foil-faced insulation with fiberglass scrim

• Cabinet air leakage < 2.0% (< 1.4% under ASHRAE 193 alternate test)

• AHRI Certified | ETL Listed | Made in USA

• 10-year parts limited warranty (registration required)
