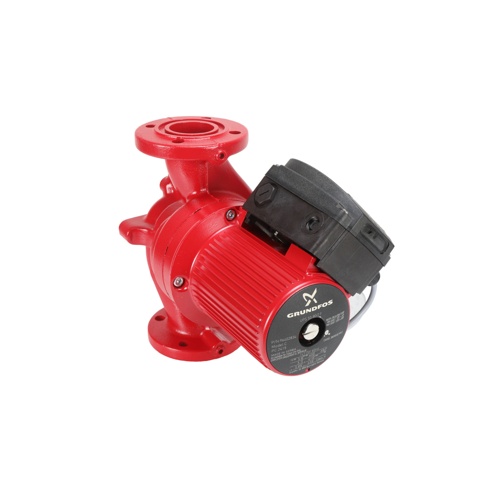

Grundfos 96402834 UPS 50-80/2 F 3/4HP 115V 3-Speed Wet Rotor Circulator Pump

Description

The Grundfos 96402834 (Model UPS 50-80/2 F) is a high-performance wet rotor circulator pump engineered for demanding hydronic heating and cooling applications. Combining a durable cast iron housing with a corrosion-resistant stainless steel impeller, this pump delivers dependable, long-lasting circulation in residential and light commercial systems.

Key Features

• 3/4 HP motor output for robust hydronic circulation
• 115V AC, single-phase power supply for standard electrical compatibility
• 3,450 RPM motor speed for efficient fluid movement
• 3-speed settings allow precise flow rate adjustment to match system demand
• Wet rotor design eliminates the need for external bearings and seals, reducing maintenance requirements
• Cast iron housing provides superior strength and durability
• Stainless steel impeller resists corrosion for extended service life
• 2″ non-ANSI 4-bolt flange suction and discharge connections for straightforward installation

Construction & Design

The UPS 50-80/2 F features a wet rotor motor configuration where the rotor runs directly in the pumped fluid, providing self-lubrication and eliminating mechanical seals. This design significantly reduces noise levels and maintenance intervals compared to traditional dry rotor pumps. The cast iron body withstands high operating pressures and temperatures typical of hydronic systems, while the stainless steel impeller ensures compatibility with treated system water.

Electrical Specifications

• Voltage: 115V AC
• Phase: Single Phase
• Motor Speed: 3,450 RPM
• Horsepower: 3/4 HP
• Speed Settings: 3-Speed

Mechanical Specifications

• Housing Material: Cast Iron
• Impeller Material: Stainless Steel
• Connection Type: 2″ Non-ANSI 4-Bolt Flange
• Suction & Discharge: 2″ Flanged Connections
• Pump Type: Wet Rotor Circulator

Ideal Applications

• Hydronic heating systems
• Radiant floor heating loops
• Boiler circulation
• Chilled water systems
• Residential and light commercial HVAC

Trust Grundfos engineering and the proven UPS series platform to deliver reliable, energy-conscious performance in your hydronic system. The SKU 96402834 is stocked and available at Jackson Systems.
