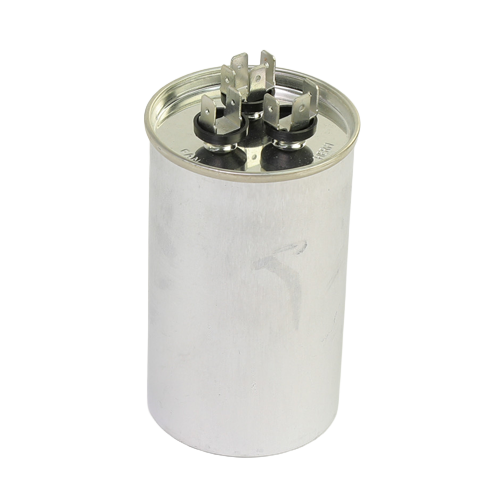

Hartland Controls CAP-50/7.5/440R 50/7.5 MFD 370/440VAC Round Dual Run Capacitor

Description

The Hartland Controls CAP-50/7.5/440R is a dual run capacitor engineered to keep residential and light commercial air conditioning systems running at peak efficiency. Combining two capacitance values in a single compact round housing, this unit simultaneously supports both the compressor and the condenser fan motor — eliminating the need for two separate capacitors and simplifying service calls.

Key Features

• Dual capacitance rating of 50/7.5 Microfarad (MFD/µF) in one round housing
• Wide voltage compatibility: rated for 370VAC and 440VAC systems
• Round form factor for easy drop-in replacement in most standard capacitor brackets
• Supports both the compressor and condenser fan motor from a single unit
• Designed for reliable, long-service-life operation in demanding HVAC environments
• Built to meet or exceed OEM specifications for a broad range of equipment brands

Specifications

• SKU: CAP-50/7.5/440R
• Brand: Hartland Controls
• Capacitance: 50/7.5 MFD (Microfarad)
• Voltage Rating: 370/440VAC
• Configuration: Dual Run
• Shape: Round

Common Applications

• Central air conditioning systems
• Heat pump condensing units
• Residential and light commercial HVAC equipment
• Condenser fan motor and compressor start/run circuits

A failed or weak run capacitor is one of the most common causes of air conditioner breakdowns. The Hartland Controls CAP-50/7.5/440R makes replacement fast and straightforward, with a universal 370/440VAC rating that covers a wide range of equipment. Keep one on your service truck to minimize downtime and get systems back online quickly.
