Description

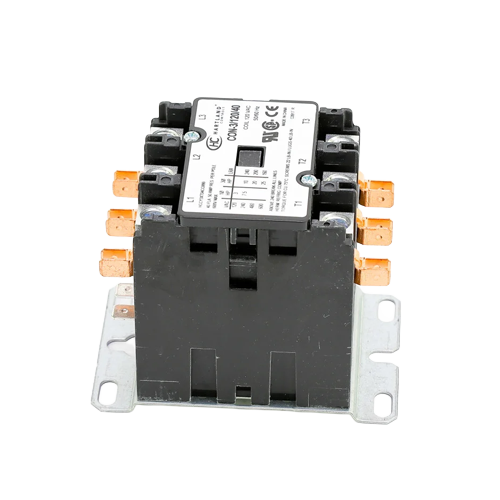

The Hartland Controls CON-3/120/40 is a heavy-duty definite purpose contactor engineered for reliable switching performance in commercial and residential HVAC applications. With a 3-pole configuration and a 40-amp rating, this contactor is well suited for controlling compressors, condensing units, air handlers, and other motor loads commonly found in heating, cooling, and refrigeration systems.
Key Features
- Definite purpose contactor design optimized for HVAC and refrigeration load switching
- 3-pole configuration for three-phase or multi-leg single-phase load control
- 40-amp continuous current rating for robust, high-load applications
- 120Vac coil voltage with 50/60Hz compatibility for broad installation flexibility
- Compact, industry-standard footprint for straightforward replacement and retrofit installations
- Durable construction designed to withstand the demanding duty cycles of HVAC equipment
Specifications
- SKU: CON-3/120/40
- Brand: Hartland Controls
- Type: Definite Purpose Contactor
- Number of Poles: 3
- Current Rating: 40 Amps
- Coil Voltage: 120Vac
- Coil Frequency: 50/60 Hz
Typical Applications
- Air conditioning compressors and condensing units
- Heat pumps and package units
- Air handlers and fan motors
- Commercial refrigeration equipment
- General HVAC motor load switching
