Hoffman Specialty 404240 2″ NPT 15 PSI Series C Cast Iron F&T Steam Trap FT015C-8

Description

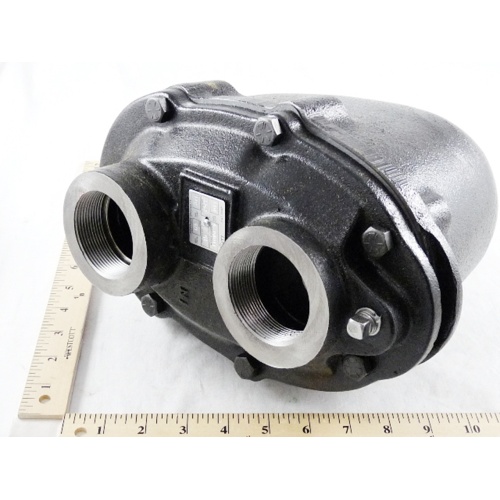

Hoffman Specialty 404240 — Series C Float & Thermostatic Steam Trap (Model FT015C-8)

The Hoffman Specialty 404240 is a heavy-duty Series C Float & Thermostatic (F&T) steam trap engineered for reliable condensate drainage and air venting in low-pressure steam heating systems. Built with a durable cast iron body, this trap combines a float mechanism for continuous condensate discharge with an integral thermostatic air vent to purge non-condensable gases — keeping your steam system operating at peak efficiency.

Key Specifications

• Model: FT015C-8
• SKU: 404240
• Connection Size: 2″ NPT
• Maximum Working Pressure: 15 PSI
• Series: C
• Body Material: Cast Iron
• Orifice Size: 0.687″
• Integrated Thermostatic Air Vent: Yes

Features & Benefits

• Float & thermostatic design provides continuous, modulating condensate discharge proportional to load
• Built-in thermostatic air vent automatically purges air and non-condensable gases for faster system warm-up
• Cast iron construction delivers long-lasting durability in demanding steam heating environments
• 2″ NPT connections for straightforward installation into standard piping systems
• 0.687″ orifice sized for optimal flow capacity at 15 PSI operating pressure
• Series C design ensures compatibility with Hoffman Specialty replacement parts and service kits

Typical Applications

• Low-pressure steam heating systems in commercial and industrial buildings
• Unit heaters, convectors, and heat exchangers
• Steam mains and branch line drip applications
• Hydronic and steam distribution systems requiring reliable condensate management

The Hoffman Specialty FT015C-8 is a trusted solution from Xylem’s Hoffman Specialty line, backed by decades of steam system expertise. Order the 404240 from Jackson Systems for fast fulfillment and expert support.
