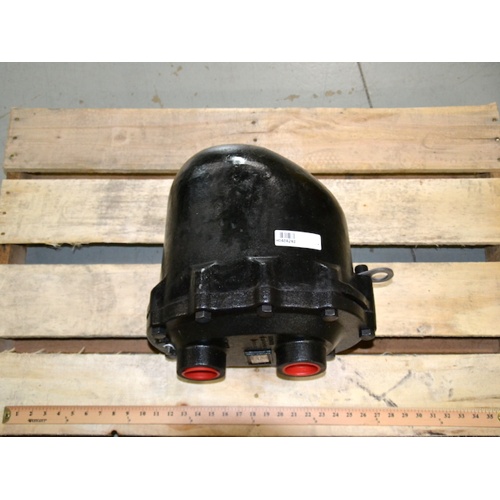

Xylem-Hoffman Specialty 404242 2″ NPT 15 PSI Series X Cast Iron F&T Steam Trap FT015X-8

Description

Xylem-Hoffman Specialty Series X Float & Thermostatic Steam Trap — Model FT015X-8 (404242)

The Xylem-Hoffman Specialty 404242 is a heavy-duty Series X Cast Iron Float & Thermostatic (F&T) Steam Trap engineered for dependable condensate removal and air venting in low-pressure steam heating systems. Combining a float mechanism with an integrated thermostatic air vent, this trap continuously discharges condensate while simultaneously purging non-condensable gases — keeping your steam system operating at peak efficiency.

Key Features

• Series X cast iron body construction for long-lasting durability in demanding steam applications
• 2″ NPT connections for straightforward installation into standard steam piping
• Rated for 15 PSI maximum operating pressure
• .970″ orifice for optimized condensate flow capacity
• Integrated thermostatic air vent automatically purges air and non-condensable gases on startup and during operation
• Float-operated continuous condensate discharge — no slugging or water hammer
• Model FT015X-8 — a trusted Hoffman Specialty design backed by Xylem engineering

Product Specifications

• SKU: 404242
• Model: FT015X-8
• Series: X
• Connection Size: 2″ NPT
• Maximum Operating Pressure: 15 PSI
• Orifice Size: .970″
• Body Material: Cast Iron
• Trap Type: Float & Thermostatic (F&T)
• Air Vent: Thermostatic, integrated

Applications

• Low-pressure steam heating systems in commercial and industrial buildings
• Unit heaters, convectors, and heat exchangers
• Steam distribution mains and branch lines requiring reliable condensate drainage
• Systems requiring simultaneous air venting and condensate removal

Why Choose the Hoffman Specialty Series X F&T Trap?

Float & Thermostatic traps are the preferred choice for applications where continuous, modulating condensate discharge is required. The float responds immediately to condensate load changes, while the thermostatic element handles air and CO₂ purging — together they protect equipment from corrosion, water hammer, and reduced heat transfer caused by air-binding. The cast iron Series X body is built to withstand the rigors of industrial steam environments, making the 404242 a reliable, long-service solution for your steam system.
