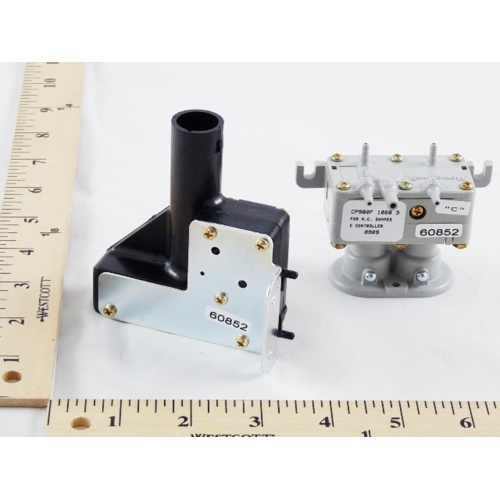

Honeywell CP980F1068 Velocitrol Velocity Sensor Controller, 9/15# Reset

Description

Honeywell CP980F1068 Velocitrol Velocity Sensor Controller Overview

The Honeywell CP980F1068 Velocitrol Velocity Sensor Controller is a precision pneumatic control device engineered for commercial HVAC applications requiring accurate velocity-based pressure reset and reheat sequencing. Designed for use with normally closed damper systems and one-pipe thermostats, this controller delivers reliable, repeatable performance in demanding building automation environments.

Key Features

• Velocitrol velocity sensor controller for pneumatic HVAC systems
• 9/15 lb reset pressure range for precise airflow control
• Reverse-acting operation — ideal for reheat sequencing applications
• Compatible with “C” Type supply units
• Designed for use with normally closed dampers and one-pipe thermostats
• Operating humidity range: 5% to 95% RH (non-condensing)
• Operating temperature range: 40°F to 130°F

Application

The CP980F1068 is suited for variable air volume (VAV) and reheat coil sequencing in commercial buildings where pneumatic control systems are in use. Its reverse-acting design ensures that as velocity pressure increases, the output signal decreases — making it the correct choice for normally closed damper control and staged reheat applications. The controller interfaces with “C” Type pneumatic supply units, providing a straightforward integration path into existing pneumatic control infrastructures.

Specifications

• SKU: CP980F1068
• Brand: Honeywell
• Type: Velocitrol Velocity Sensor Controller
• Reset Pressure Range: 9/15 lb
• Action: Reverse Acting
• Application: Reheat Sequencing
• Compatible Supply Unit: “C” Type
• Damper Type: Normally Closed
• Thermostat Compatibility: One Pipe Thermostats
• Humidity Rating: 5% to 95% RH
• Temperature Rating: 40°F to 130°F
