Description

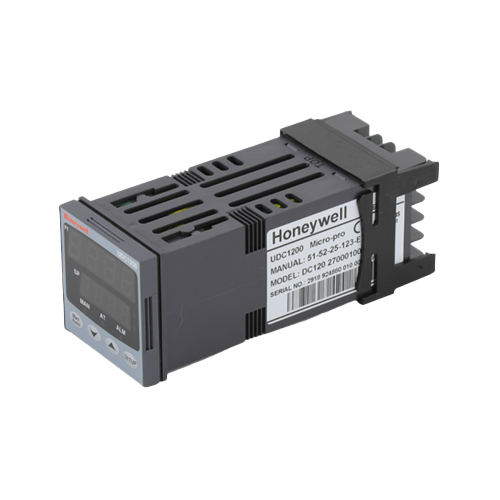

The Honeywell DC120270001000 is a versatile, microprocessor-based universal digital controller—part of the UDC1200 “Micro‑Pro” line—designed for precise monitoring and control of temperature, pressure, and level in industrial and commercial environments. Housed in a compact 1/16 DIN package, this controller is ideal when panel space is limited but performance and flexibility are essential.
Specifications:
- Source Resistance: 1000 ohms maximum for thermocouple
- Outputs: Linear: 4-20mA
- Power Supply: 90 to 264 Vac
- Input Sampling Rate: 4 Samples per second
- Ambient Operating Temperature: 0 C – 55 C (32 F to 131 F)
- Frequency: 50-60 Hz
- Temperature Stability: 0.01 % of span per ºC
- Accuracy: 0.1 % of span ± 1 LSD
- Mounting: 1/16 DIN panel cutout
- Approvals: UL, FM approval on the UDC1200 Limit Model, CE
