Description

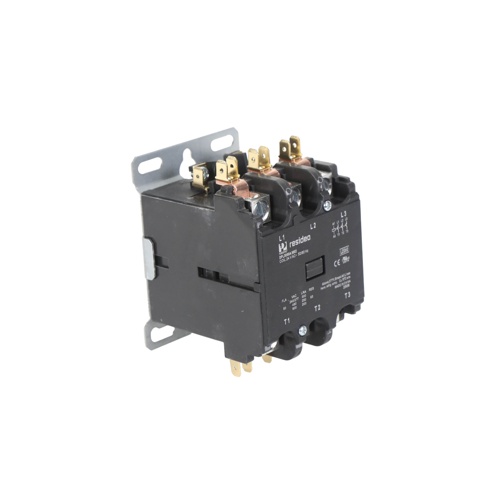

Honeywell DPL3050A5002 Definite Purpose Contactor Overview
The Honeywell DPL3050A5002 is a heavy-duty definite purpose contactor engineered for dependable load switching in commercial and residential HVAC applications. With a 3-pole configuration, a 50-amp current rating, and a 24-volt coil, this contactor is purpose-built to handle the demanding electrical requirements of air conditioning compressors, condensing units, heat pumps, and other motor-load equipment.
Key Features
- 3-pole design for three-phase or multi-leg load control
- 50-amp continuous current rating for high-capacity HVAC loads
- 24V coil voltage — compatible with standard low-voltage HVAC control circuits
- Definite purpose construction optimized for HVAC compressor and motor switching
- Compact, panel-mount friendly form factor for easy installation in electrical enclosures
- Durable contact materials for extended service life under frequent cycling
Typical Applications
- Air conditioning compressors and condensing units
- Heat pump systems
- Commercial refrigeration equipment
- Fan and blower motor control panels
- General HVAC load switching applications
Specifications
- SKU: DPL3050A5002
- Brand: Honeywell
- Poles: 3
- Amperage Rating: 50A
- Coil Voltage: 24V
- Type: Definite Purpose Contactor
