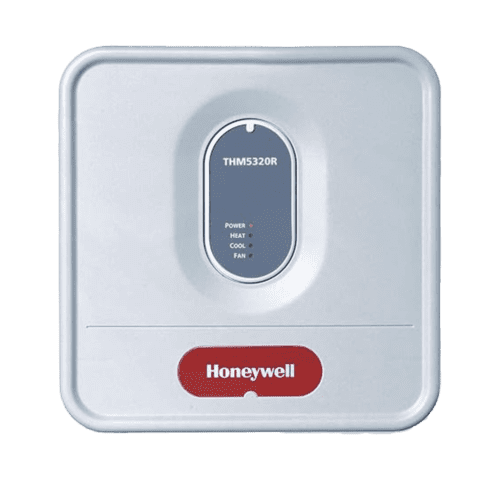

Honeywell THM5320R1000 FocusPRO Equipment Interface Module

BRAND: Honeywell SKU: THM5320R1000

(1 customer review)

$171.50

MSRP: $410.96
You save 58%

Equipment Interface Module, Wireless Receiver Only

Free Shipping
Ships Today
Availability:

2 In Stock

Description

Honeywell THM5320R1000 Equipment Interface Module – WIRELESS RECEIVER ONLY

Easily relocate thermostat or upgrade equipment without running new wires using this module and a wireless FocusPRO® thermostat.

Features:

  • Powered by RedLINK™ reliability
  • No interference with other wireless devices in the home
  • Works with TH6320R1004 or TH5320R1002 Wireless FocusPRO® thermostats
  • Input for Return Air Sensor
  • Quick-connect terminal blocks
  • LEDs for power and system status

Specifications:

Description: Controls up to 3 heat / 2 cool heat pump systems or up to 2 heat / 2 cool conventional systems when used with the wireless FocusPRO® thermostat.
Application: Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity
Color: Gray
Stages: Up to 3 Heat/2 Cool Heat Pump or Up to 2 Heat/2 Cool Conventional
Terminal Designations: C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS
Dimensions (in.): 8 1/8 in. high x 8 in. wide x 1 7/8 in. deep
Dimensions (mm): 206 mm high x 203 mm wide x 47 mm deep
Electrical Ratings: 18 to 30 Vac, 50/60 Hz
Cool Current: 1.0 A running
Heat Current: 1.0 A running
Fan Current: 0.6 A running
Operating Temperature Range (F): -40 F to 165 F
Operating Temperature Range (C): -40 C to 73.9 C
Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
Comments: Equipment Interface Module is also available in kits
Voltage: 18 to 30 Vac
Parts Needed for Operation (not included): TH6320R1004 or TH5320R1002 Wireless FocusPRO® Thermostat

Additional information

Warranty

Color

UPC 696335219547
Imprinting Available Yes
