Description

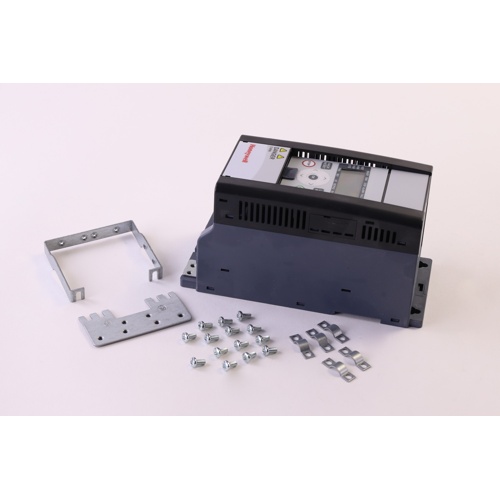

The Honeywell HVFD2D3C0030 is a professional-grade HVAC2 Variable Frequency Drive engineered to deliver precise, energy-efficient motor speed control in demanding commercial HVAC applications. Designed for three-phase systems, this open chassis drive operates on a 380–480 VAC input and is rated for 3 HP loads, making it well-suited for fans, pumps, and air handling equipment throughout a building.
With a wide acceleration and deceleration range of 0.1 to 3000 seconds, the HVFD2D3C0030 gives technicians and system designers the flexibility to fine-tune motor ramp-up and ramp-down profiles to match specific application requirements — protecting mechanical components and reducing inrush current. The drive’s operating temperature range of 14°F to 122°F (–10°C to 50°C) ensures reliable performance across a broad range of installation environments.
Housed in an open chassis MI1 frame configuration, this VFD is designed for panel or enclosure mounting, keeping the installation footprint compact while allowing for proper thermal management.
Key Features
- HVAC2 series variable frequency drive
- Input voltage: 380–480 VAC, three-phase
- Power rating: 3 HP
- Open chassis design with MI1 frame
- Acceleration time: 0.1 to 3000 seconds (adjustable)
- Deceleration time: 0.1 to 3000 seconds (adjustable)
- Operating temperature range: 14°F to 122°F (–10°C to 50°C)
Applications
- Commercial HVAC fan and pump motor control
- Air handling units (AHUs)
- Cooling tower fan drives
- Chilled water and condenser water pump systems
- Building automation and energy management systems
Why Choose the Honeywell HVFD2D3C0030?
Honeywell’s HVAC2 VFD series is purpose-built for the HVAC industry, offering intuitive setup and reliable long-term operation. By controlling motor speed to match actual system demand, this drive helps reduce energy consumption, extend equipment life, and improve overall system comfort. The adjustable ramp times minimize mechanical stress on belts, bearings, and couplings, while the wide input voltage range accommodates most commercial three-phase power systems.
