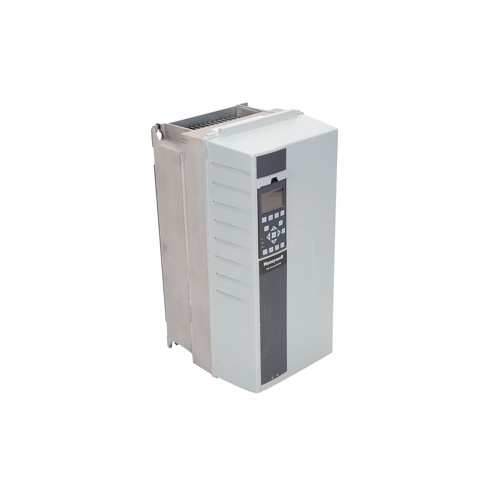

Honeywell HVFD3D3A0100G100C 208-230V 10HP 7.5kW NEMA 1 VFD

Description

The Honeywell HVFD3D3A0100G100C is a professional-grade Variable Frequency Drive (VFD) engineered for demanding HVAC and commercial building applications. Delivering precise motor speed control at 208–230V input with a 10 HP (7.5 kW) output rating, this drive is an ideal solution for optimizing the performance of fans, pumps, compressors, and other motor-driven equipment. Its NEMA 1 enclosure makes it well-suited for indoor, protected mechanical room installations where a standard open-chassis enclosure is appropriate.

By modulating motor speed to match actual system demand, the HVFD3D3A0100G100C helps reduce energy consumption, extend equipment life, and minimize mechanical stress — delivering measurable operational savings over traditional across-the-line motor starting methods.

Key Features

• Input Voltage: 208–230V
• Output Power: 10 HP / 7.5 kW
• Enclosure Type: NEMA 1 (indoor, protected)
• Variable Frequency Drive (VFD) for precise motor speed control
• Reduces energy consumption by matching motor speed to load demand
• Extends motor and mechanical system service life
• Minimizes inrush current and mechanical shock at startup
• Suitable for fans, pumps, compressors, and HVAC air-handling equipment
• Honeywell quality engineering for reliable, long-term performance

Typical Applications

• Commercial HVAC air handling units (AHUs)
• Supply and return fan speed control
• Hydronic pump speed modulation
• Cooling tower fan control
• Exhaust and ventilation fan systems

Why Choose a VFD?

Variable Frequency Drives are one of the most effective tools for reducing energy costs in commercial HVAC systems. By controlling motor speed electronically rather than relying on mechanical throttling or dampers, VFDs can dramatically cut energy usage during partial-load conditions — which represent the majority of operating hours in most buildings. The Honeywell HVFD3D3A0100G100C brings this capability to 10 HP motor applications in a compact, NEMA 1-rated package built for professional installation.
