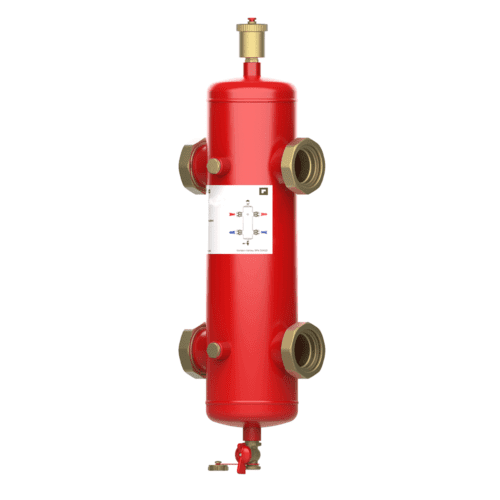

Honeywell Resideo HYDROSEP-104-U 1-1/2in Hydraulic Separator Union

BRAND: Honeywell SKU: HYDROSEP-104-U


MSRP: $1147.87
You save 59%

1-1/2″ Hydraulic Separator Union

Free Shipping
Ships Today

1 In Stock


The Resideo HYDROSEP-104-U is a 1-1/2 inch magnetic hydraulic separator union that performs the following functions:

  • Hydraulic separator: Makes connected hydraulic circuits independent, preventing any flow influence between circulators installed in series and balancing the difference of flows through the circuits, all according to the characteristics of their corresponding circulator.
  • Dirt separator: Separates and eliminates any debris inside the circuits thanks to the combined action of a magnet and a metallic mesh surface which allow for the separation to take place. The impurities can subsequently be removed by the discharge valve.
  • Deaerator: Separates and eliminates the air inside the circuits through the air vent placed on the separator’s upper connection. The hydraulic separators are equipped with insulation to minimize thermal loss.


  • Union Model
  • Compatible with all fitting options: Sweat, Threaded, Press
  • Can be used for both residential and commercial applications
  • A magnet acts as a filter & balancer

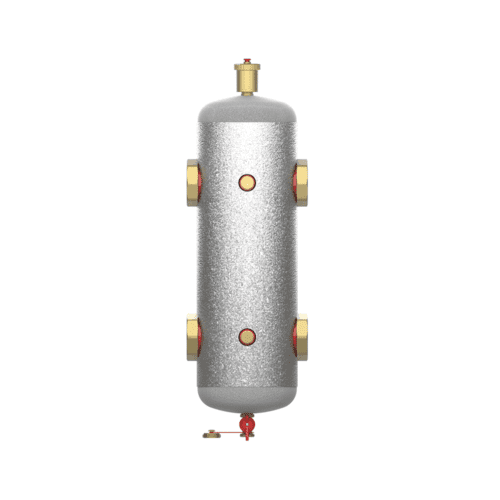

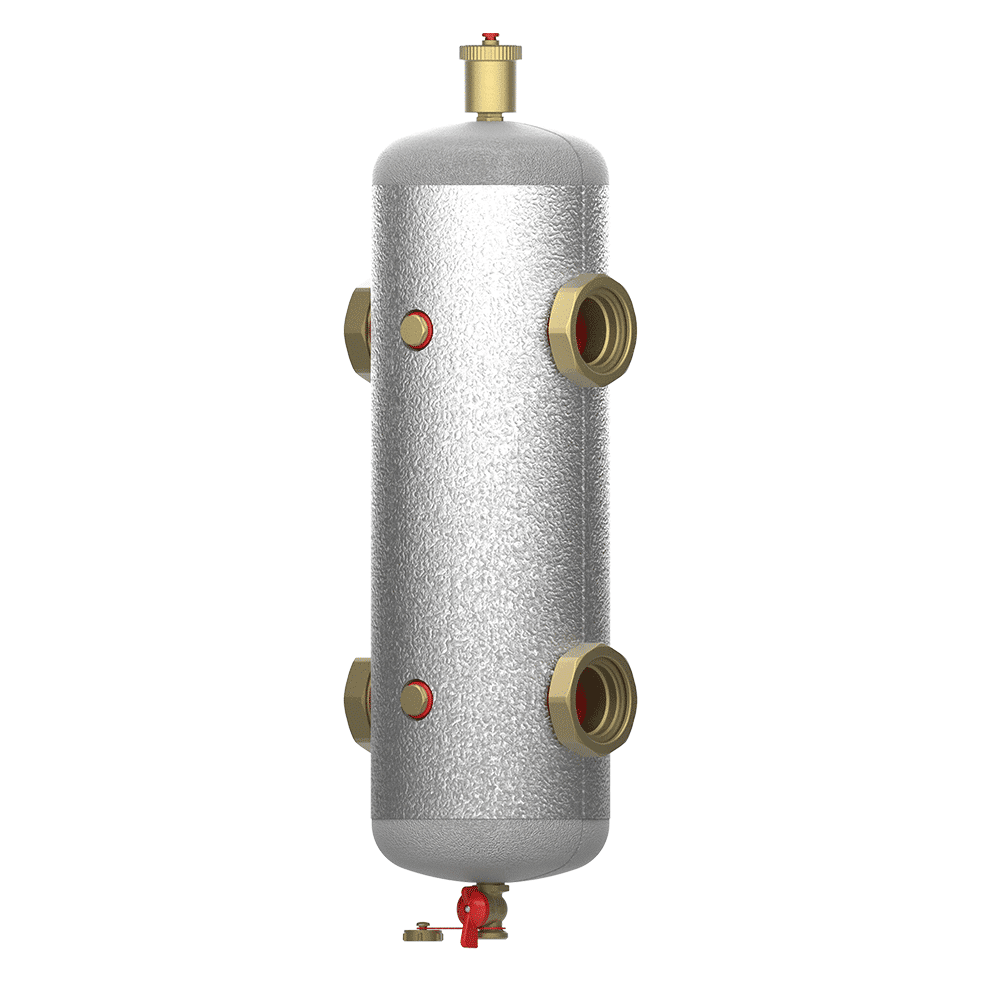

  • Insulation Included

Additional information


Flow Rate

Fluid Temperature

Connection Type

UPC 194159006591
