Description

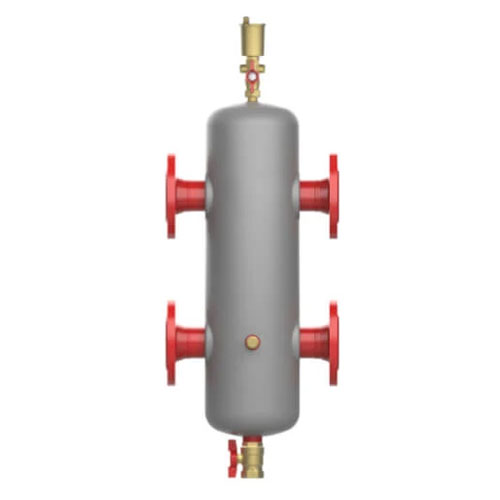

The Honeywell HYDROSEP-105-F is a 2″ flanged hydraulic separator engineered to decouple the primary and secondary circuits in hydronic heating and cooling systems. By hydraulically separating the boiler or chiller loop from the distribution loop, this device eliminates unwanted flow interactions between circuits, ensuring stable pressure differentials and consistent flow rates throughout the system.
How It Works
The hydraulic separator acts as a low-velocity zone where primary and secondary circuits meet. This low-velocity chamber allows differential pressures between the two loops to equalize, preventing the primary pump from interfering with secondary zone pumps — and vice versa. The result is a more efficient, balanced hydronic system with reduced wear on all circulating pumps.
Key Features
- 2″ flanged connections for secure, leak-resistant installation
- Hydraulically separates primary (boiler/chiller) and secondary (distribution) loops
- Eliminates unwanted flow interaction between circuits
- Promotes stable differential pressure across zone pumps
- Compact, vertical design suitable for mechanical room installations
- Durable construction built to withstand typical hydronic system operating conditions
- Flanged end connections for easy service and maintenance access
System Benefits
- Improves overall system efficiency by allowing each loop to operate independently
- Reduces pump short-cycling and premature wear
- Simplifies system balancing during commissioning
- Compatible with multi-zone hydronic heating and cooling applications
- Supports proper flow distribution to all terminal units
Typical Applications
- Residential and light commercial hydronic heating systems
- Multi-zone radiant floor heating installations
- Boiler primary/secondary piping configurations
- Chilled water fan coil and air handler distribution systems
