Description

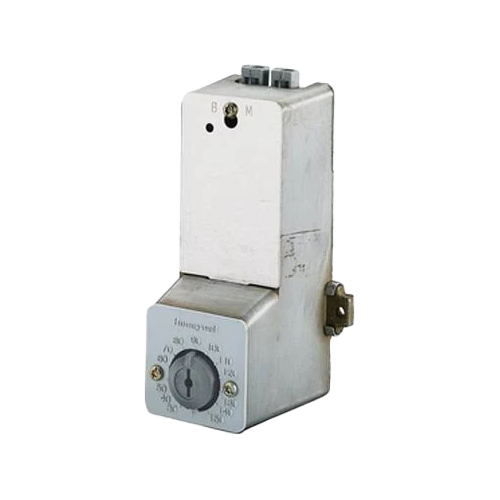

The Honeywell LP907A1002 is a one-pipe, direct‑acting pneumatic insertion thermostat designed to provide proportional air pressure control for valves and dampers in HVAC systems. With a setpoint range from 40 °F to 140 °F and an adjustable throttling range of 10–70 °F, this rugged controller ensures precise temperature modulation for unit ventilators and other industrial ventilation applications.
Features
- Rod and tube insertion sensing element.
- Wide throttling range.
- Gage tee and tank valve facilitate checking line pressures.
Specifications
- Application: Low Limit controller
- Remote bulb: Yes
- Setpoint: Single
- Action: Direct Acting
- Number of Pipes: 1
- Setpoint Temperature: 40 F to 140 F
- Air Connections: Barb fittings 1/4 in. (6 mm) poly tubing
- Sensor Element: Invar rod and seamless brass tube, 18 3/4 in. (476 mm) long and 11/32 in. (9 mm) diameter
- Max Safe Operating Pressure: 25 psi
- Operating Temp. Range: 40 F to 140 F
- Capacity: Low
- Throttling Range: 10 F to 70 F
- Includes: Fittings for mounting on sheet metal duct. Order restrictor separately.
