Description

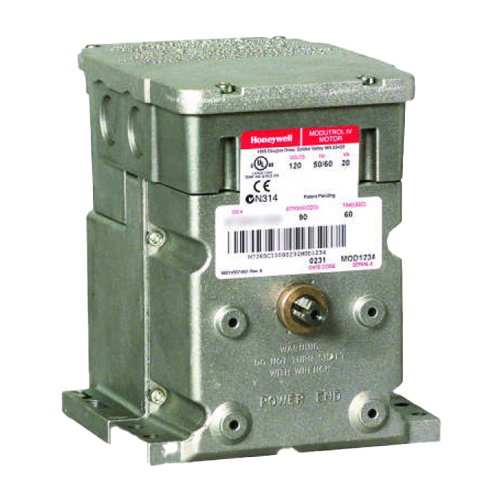

The Honeywell M7285C1009 is a high-performance, foot-mounted, spring return actuator designed for precision control in HVAC damper and valve applications. Operating at 120V and delivering 60 lb-in torque, this actuator provides reliable modulating or two-position control, with spring return fail-safe functionality. It also features two internal auxiliary switches, allowing for customizable end-point signaling and integration with control systems.
Specifications:
- Application Type: Electric
- Fail Safe Mode: Spring Return
- Control Signal: Modulating, 4-20 mA
- Motor Shaft: Dual ended Shaft
- Stroke:Adjustable; 90 to 160 degrees, Asymmetrical
- External Auxiliary Switches Available: Yes
- Frequency: 50 Hz, 60 Hz
- Power Consumption Driving (VA): 20 VA
- Shaft Dimensions (in.): .375 in
- Shaft Shape: Square
- Mounting: foot-mounted
- Dimensions: 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
- Temperature Range: -40 to 150F
- Deadweight Load on Shaft (Either End) (lb): 200 lbs
- Deadweight Load on Shaft (Combined on both shafts) (lb): 300 lbs
- Auxiliary Switch Ratings AFL – 120 Vac: 7.2A
- Auxiliary Switch Ratings AFL – 240 Vac: 3.6A
- Auxiliary Switch Ratings ALR- 120 Vac: 43.2A
- Auxiliary Switch Ratings ALR- 240 Vac: 21.6A
