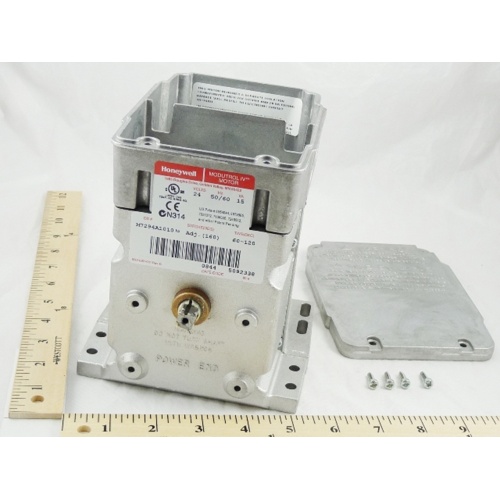

Honeywell Modutrol IV Motor — M7294A1010
The Honeywell M7294A1010 is a high-performance Modutrol IV actuator motor engineered for precise, modulating control of dampers and valves in commercial HVAC and building automation applications. With a robust 300 lb-in torque output and a 24VAC power supply, this motor delivers the reliable, repeatable positioning needed in demanding mechanical systems.
Key Features
- Non-spring return design for reliable bidirectional positioning
- 300 lb-in torque output for heavy-duty damper and valve applications
- 24VAC operating voltage for compatibility with standard control systems
- Modulating control via 2–10VDC input signal for precise positioning
- 60–120 second nominal timing for smooth, controlled actuation
- 90–160 degree stroke range with 160-degree factory stroke setting
- Foot-mounted design for secure, stable installation
- Dual-ended square shaft for versatile linkage connections
- Integral auxiliary switches included for end-of-travel signaling and interlock functions
Technical Specifications
- SKU: M7294A1010
- Series: Modutrol IV
- Supply Voltage: 24VAC
- Control Signal: 2–10VDC (Modulating)
- Torque: 300 lb-in
- Timing: 60–120 seconds (nominal)
- Stroke Range: 90–160 degrees
- Factory Stroke Setting: 160 degrees
- Return Type: Non-Spring Return
- Mounting Style: Foot Mounted
- Shaft Type: Dual-Ended Square Shaft
Applications
- Commercial HVAC air handling units
- Modulating damper control in VAV and mixed-air systems
- Valve actuation in hydronic and steam systems
- Building automation and energy management systems
The M7294A1010 is part of Honeywell’s trusted Modutrol IV family, known for long service life and compatibility with a wide range of control systems. Its foot-mount configuration and dual-ended square shaft make field installation straightforward, while the integral auxiliary switches add flexibility for system interlocks and status feedback.
