Honeywell MP913A1177 Pneumatic Variable Volume Damper Actuator, Spring Return

Description

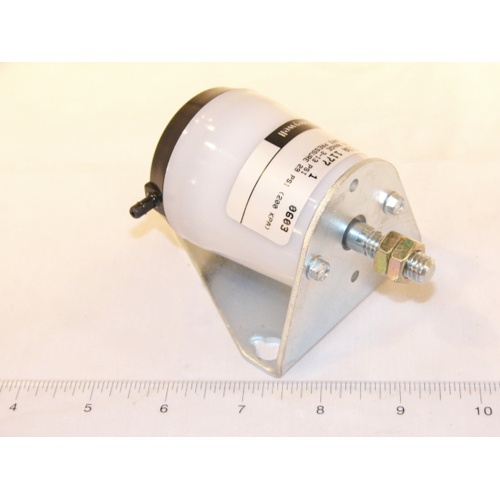

Honeywell MP913A1177 Pneumatic Variable Volume Damper Actuator

The Honeywell MP913A1177 is a pneumatic variable volume (VAV) damper actuator engineered for precise, reliable control of air distribution in commercial HVAC systems. Featuring a spring-return design, this actuator automatically returns to its fail-safe position upon loss of air pressure, ensuring safe and consistent system operation. Its low actuator force output makes it well-suited for lightweight damper assemblies where minimal loading is required.

Key Features

• Spring-return operation for automatic fail-safe positioning
• Low actuator force design — ideal for variable volume damper applications
• Barbed fitting sized for 1/4″ OD plastic pneumatic tubing for easy field connections
• 3–13 PSI spring range for proportional control response
• 30 PSI maximum operating pressure
• Includes a 90-degree angled mounting bracket for versatile installation orientations
• Includes 3/8″ threaded connection hardware for secure mounting

Specifications

• SKU: MP913A1177
• Brand: Honeywell
• Actuator Type: Pneumatic, Variable Volume
• Action: Spring Return
• Spring Range: 3–13 PSI
• Maximum Operating Pressure: 30 PSI
• Tubing Connection: Barbed fitting for 1/4″ OD plastic tubing
• Mounting: 90-degree angled bracket included; 3/8″ threaded connection included
• Actuator Force: Low

Applications

The MP913A1177 is designed for use in VAV (variable air volume) HVAC systems where pneumatic control of damper position is required. It is commonly installed in commercial building automation environments to modulate airflow in response to zone demand, improving energy efficiency and occupant comfort.

What’s Included

• Pneumatic damper actuator (MP913A1177)
• 90-degree angled mounting bracket
• 3/8″ threaded connection hardware
