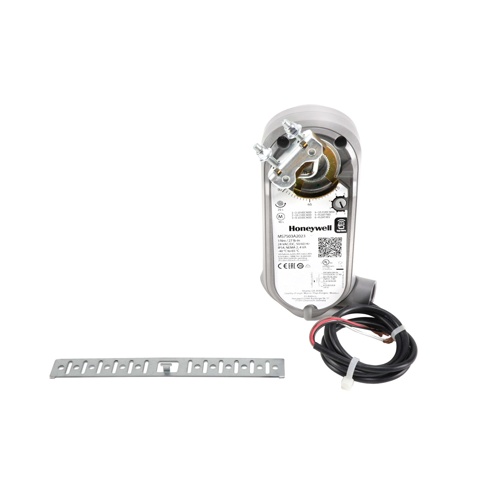

Honeywell MS7503A2023 DCA 24V 27 lb-in Spring Return U-Bolt Actuator

Description

Honeywell MS7503A2023 Direct Coupled Actuator Overview

The Honeywell MS7503A2023 is a Direct Coupled Actuator (DCA) engineered for dependable damper control in commercial and residential HVAC applications. Featuring a 24V power supply, 27 lb-in torque output, and a spring return (SR) fail-safe mechanism, this actuator ensures your damper returns to a defined safe position upon loss of power — a critical feature for life-safety and energy management systems. The U-bolt mounting design simplifies installation on round damper shafts, reducing labor time and ensuring a secure, vibration-resistant connection.

Key Features

• Direct Coupled Actuator (DCA) design — no crank arm or linkage required
• 24V operating voltage for compatibility with standard HVAC control systems
• 27 lb-in torque output for reliable damper positioning
• Spring Return (SR) fail-safe operation — returns damper to safe position on power loss
• U-bolt mounting for secure, tool-friendly installation on round shafts
• Compact form factor suitable for tight mechanical spaces
• Designed for use with zone dampers, fresh air dampers, and ventilation control applications

Application

The MS7503A2023 is ideal for HVAC zoning systems, air handling units, and ventilation control where a spring return fail-safe actuator is required. The direct-coupled design eliminates the complexity of external linkages, while the U-bolt mount provides a fast, reliable connection to damper shafts in both new construction and retrofit installations.

Why Choose the Honeywell MS7503A2023

Honeywell’s DCA series actuators are trusted by HVAC professionals for their robust construction, consistent torque delivery, and fail-safe reliability. The spring return function provides peace of mind in applications where damper position on power failure is critical to building safety or code compliance. Whether you’re upgrading an existing system or specifying new equipment, the MS7503A2023 delivers the performance and dependability Honeywell is known for.
