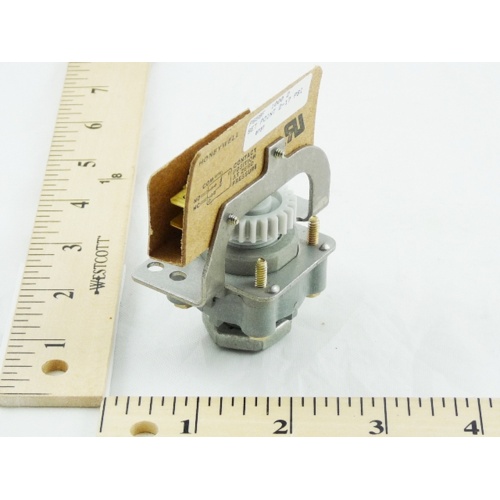

Honeywell P658F1000 Pneumatic Electric Switch Overview
The Honeywell P658F1000 is a reliable pneumatic electric switch engineered for commercial and industrial HVAC control applications. It converts pneumatic air pressure signals into electrical switching actions, making it an essential component in pneumatic building automation and control systems. With a broad setpoint range and durable construction, this switch delivers precise, repeatable performance across a wide range of operating conditions.
Key Features
- Setpoint range: 2–17 PSI for flexible pneumatic system integration
- Differential pressure range: 1 PSI for accurate switching control
- Panel mount installation via Double D hole for secure, tool-friendly mounting
- Barb fitting air connection designed for 1/4″ OD plastic tubing
- Operating temperature range: 40°F to 140°F (4°C to 60°C)
- Operating humidity range: 5% to 95% RH (non-condensing)
Application & Compatibility
The P658F1000 is ideal for use in pneumatic control systems where air pressure signals must be converted to electrical outputs. Common applications include fan and damper control, pneumatic-to-electric interface panels, and building automation systems. The Double D panel mount hole design simplifies installation in control enclosures, while the barb fitting ensures a secure, leak-free connection to standard 1/4″ OD pneumatic tubing.
Specifications
- Model: P658F1000
- Brand: Honeywell
- Switch Type: Pneumatic Electric Switch
- Setpoint Range: 2–17 PSI
- Differential Pressure Range: 1 PSI
- Mounting Style: Panel Mount, Double D Hole
- Air Connection: Barb Fitting for 1/4″ OD Plastic Tubing
- Operating Temperature: 40°F–140°F (4°C–60°C)
- Operating Humidity: 5%–95% RH
