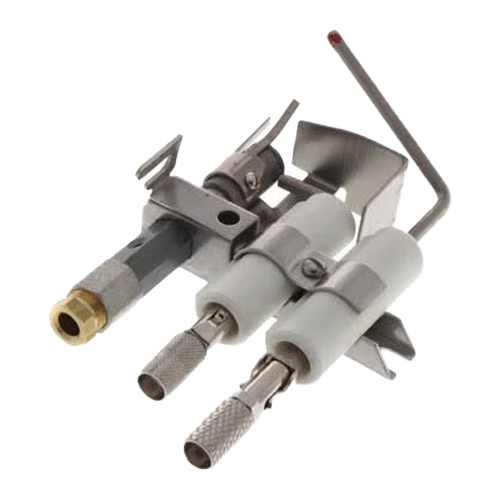

Honeywell Q179A1092 Flame Rectifier Gas Pilot

Description

Ensure safe and reliable ignition in industrial or commercial burner systems with the Honeywell Q179A1092 Flame Rectifier Pilot. Engineered for intermittent or interrupted electrically ignited applications, this pilot integrates ignition and flame sensing in one compact assembly—crafted for flame safeguard precision and operational resilience.

Features:

• Q179A is a gas pilot assembly (with a flame electrode rod) and ignition electrode, making it suitable for applications requiring an interrupted or intermittent electrically ignited gas pilot burner.
• Q179B has only the flame electrode and is suitable for use in continuous pilot applications.
• Primary aerated type burner is equipped with stainless steel fins that provide the proper flame rod area to ground area ratio for maximum flame signal and flame stabilization.
• Stainless steel electrode(s) are mounted in ceramic insulators, which permit electrode adjustment. Rajah connectors facilitate disconnecting (A1126 has terminal screws).
• Bracket permits side or end mounting.
