Description

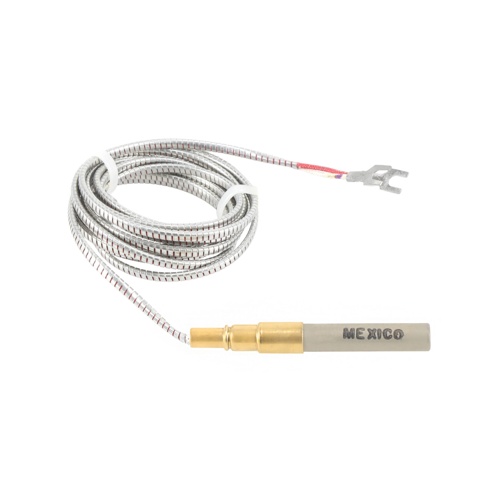

Honeywell Q313A1105 750mV Thermopile Overview
The Honeywell Q313A1105 is a 750-millivolt thermopile designed to generate pilot-powered electricity for millivolt gas heating systems. With a generous 75-inch lead, this thermopile provides the flexibility needed for a wide variety of gas appliance installations, including fireplaces, wall heaters, floor furnaces, and boilers that rely on standing pilot systems.
Key Features
- 750mV output — compatible with standard millivolt gas valve systems
- 75-inch (75″) lead length for flexible routing and installation
- Designed for use in standing pilot gas appliance applications
- Generates self-powered electricity from pilot flame heat — no external power required
- Reliable Honeywell quality for long service life
- Direct replacement for compatible Honeywell thermopile applications
Typical Applications
- Gas fireplaces and fireplace inserts
- Wall heaters and floor furnaces
- Boilers with millivolt control systems
- Water heaters with standing pilot ignition
- Other gas appliances using millivolt gas valves
Specifications
- SKU: Q313A1105
- Brand: Honeywell
- Output Voltage: 750mV
- Lead Length: 75 inches
- Type: Thermopile
