Description

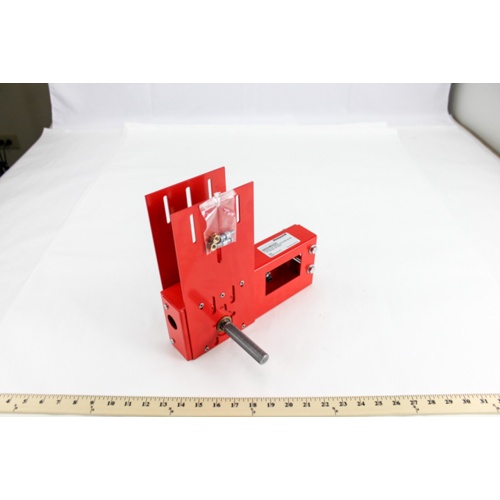

The Honeywell Q5024B2230 is a Double Globe Valve Linkage engineered to connect direct coupled actuators to 2-way or 3-way globe valves in commercial HVAC hydronic systems. Designed for a 1.18″ (30 mm) valve stroke, this linkage provides a secure, precise mechanical connection between the actuator and valve stem, ensuring accurate flow control and reliable system performance.
Key Features
- Double globe valve linkage for use with direct coupled actuators
- Compatible with 1.18″ (30 mm) valve stroke applications
- Suitable for use on 2-way and 3-way globe valves
- Engineered for secure actuator-to-valve stem coupling
- Supports precise modulating control in hydronic HVAC systems
- Honeywell quality construction for long-term durability
Applications
- Commercial and industrial hydronic heating and cooling systems
- AHU coil valve control with direct coupled actuators
- Fan coil unit and air handling unit valve assemblies
- Chilled water and hot water control valve installations
Compatibility
- Designed for use with Honeywell direct coupled globe valve actuators
- Compatible with 2-way and 3-way globe valve configurations
- Specified for 1.18″ valve stroke
The Q5024B2230 is an essential accessory for HVAC technicians and contractors installing or replacing globe valve actuator assemblies. Its robust design ensures a reliable mechanical link that maintains accurate valve positioning throughout the life of the system.
