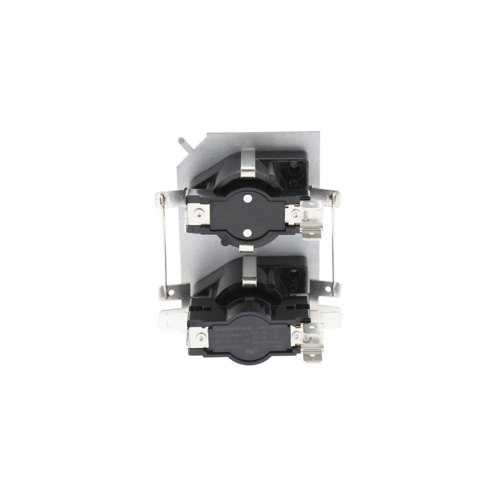

Honeywell R24CB4007 Heat Sequencer Overview
The Honeywell R24CB4007 is a precision-engineered heat sequencer designed for electric heat applications. Operating on a 24VAC input signal, this sequencer staggers the activation and deactivation of electric heating elements to prevent simultaneous inrush current, protecting your system and extending equipment life. With adjustable on and off timing delays across three independent switches, the R24CB4007 delivers reliable, staged control for residential and light commercial electric furnaces and air handlers.
Key Features
- 24VAC input voltage for compatibility with standard low-voltage control systems
- 1–110 second adjustable On Timing Delay for First, Second, and Third Switch
- 1–110 second adjustable Off Timing Delay for First, Second, and Third Switch
- Three independently timed switches for staged electric heat sequencing
- Solder or screw-type 1/4″ quick-connect electrical terminations for flexible installation
- Designed specifically for electric heat applications including electric furnaces and heat strips
Electric Heat Sequencing Benefits
By staggering the energizing of multiple heating elements, the R24CB4007 reduces peak electrical demand and prevents nuisance tripping of circuit breakers. The wide 1–110 second timing range on both the on and off cycles gives technicians the flexibility to fine-tune staging intervals to match the specific load requirements of the system.
Termination Options
- Solder-type connections for permanent, low-resistance terminations
- Screw-type 1/4″ quick-connect terminals for fast, tool-friendly field wiring
Specifications
- SKU: R24CB4007
- Brand: Honeywell
- Input Voltage: 24VAC
- On Timing Delay: 1–110 Seconds (First, Second, and Third Switch)
- Off Timing Delay: 1–110 Seconds (First, Second, and Third Switch)
- Number of Switches: 3
- Application: Electric Heat
- Terminal Type: Solder or Screw-Type 1/4″ Quick Connect
