Description

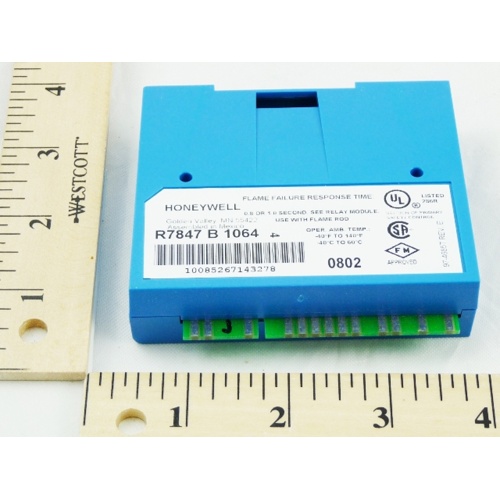

The Honeywell R7847B1064 is a professional-grade Flame Signal Amplifier engineered for reliable flame detection in commercial and industrial burner control systems. Designed to work seamlessly within Honeywell’s burner management ecosystem, this amplifier delivers fast, accurate flame signal processing to help protect equipment and ensure safe combustion operation.
Ampli-Check Diagnostic Technology
The R7847B1064 features Honeywell’s Ampli-Check function, which continuously verifies the integrity of the flame signal amplifier circuit. This self-checking capability provides an added layer of safety assurance, confirming that the amplifier is operating correctly during every burner cycle — not just when a flame is present.
Flame Failure Response Time
- Selectable flame failure response time of 0.8 second or 1 second
- Fast response helps minimize fuel release in the event of unexpected flame loss
- Suitable for applications requiring tight safety timing compliance
Compatible Flame Sensors
The R7847B1064 is compatible with a wide range of Honeywell flame sensing devices, making it a versatile choice for gas-fired burner applications:
- Rectifying Flame Rods: C7004, C7005, C7007, C7008, C7009
- Flame Rod Adapter: Q179 — for impedance matching on sensor cable runs greater than 50 feet
- Ultraviolet (UV) flame scanners (see system documentation for compatible UV scanner models)
Key Features
- Ampli-Check self-checking amplifier circuit for enhanced safety
- Selectable 0.8-second or 1-second flame failure response time
- Supports rectifying flame rod sensors: C7004, C7005, C7007, C7008, C7009
- Q179 impedance matching adapter support for long cable runs exceeding 50 feet
- Compatible with ultraviolet (UV) flame detection systems
- Designed for integration with Honeywell burner management and flame safeguard controls
Applications
- Commercial and industrial gas-fired burners
- Boiler and combustion systems requiring flame safeguard control
- Systems with extended sensor cable runs requiring impedance matching
- Installations utilizing UV flame scanners
