Description

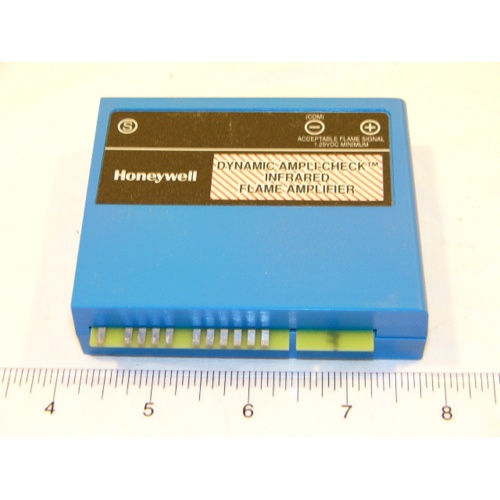

The Honeywell R7852B1009 is a precision-engineered Flame Signal Amplifier designed for use with the Honeywell 7800 Series Primary Safety Controls. Featuring Ampli-Check self-checking technology, this amplifier continuously monitors flame signal integrity to ensure reliable and safe burner operation across gas, oil, and coal-fired applications.
Key Features
- Ampli-Check self-checking amplifier for continuous flame signal verification
- Selectable 2-second or 3-second flame failure response time
- Flame signal strength indicator ranges from 0.0 to 5.0 for easy diagnostics
- Compatible with infrared flame sensor model C7915
- Designed for use with Honeywell 7800 Series Primary Safety Controls
- Suitable for gas, oil, and coal-fired burner applications
- Distinctive red/white color coding for quick identification
Application
The R7852B1009 is ideal for commercial and industrial burner management systems where reliable flame detection is critical. The Ampli-Check feature provides an added layer of safety by continuously verifying that the amplifier and flame sensor circuit are functioning correctly, helping to prevent unsafe operating conditions.
Compatibility
- Primary Safety Control: Honeywell 7800 Series
- Flame Sensor: Infrared C7915
- Fuel Types: Gas, Oil, Coal
Specifications
- SKU: R7852B1009
- Brand: Honeywell
- Flame Failure Response Time: 2 seconds or 3 seconds (selectable)
- Flame Signal Strength Range: 0.0 – 5.0
- Amplifier Type: Ampli-Check (self-checking)
- Compatible Flame Sensor: C7915 Infrared
- Color: Red/White
- Application: Gas, Oil, Coal-fired burners
