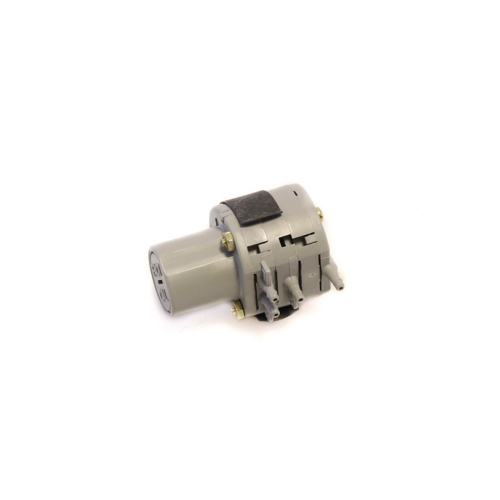

Honeywell RP670A1019 Pneumatic SPDT Switching Relay, 13-17 PSI, 5/32″ Barb

Description

Honeywell RP670A1019 Pneumatic SPDT Switching Relay Overview

The Honeywell RP670A1019 is a single-pole, double-throw (SPDT) pneumatic switching relay engineered for commercial and industrial HVAC control systems. When pilot pressure changes, this relay automatically blocks, diverts, or bleeds pneumatic air lines — making it an essential component for reliable pneumatic control sequencing in building automation and air handling applications.

Key Features

• SPDT relay action: block, divert, or bleed pneumatic air lines on pilot pressure change
• Switching pressure range: 13–17 PSI for precise pneumatic control
• 5/32″ barb fittings for secure, leak-resistant tubing connections
• Operating temperature range: 0°F to 140°F for broad environmental compatibility
• Operating humidity range: 5–95% RH for use in diverse HVAC environments
• Compact block-style housing for easy panel or field mounting

Applications

• Commercial HVAC pneumatic control systems
• Air handling unit (AHU) pneumatic sequencing
• Building automation systems utilizing pneumatic actuators
• Switching between pneumatic control branches based on pilot signal changes
• Bleed or divert functions in multi-zone pneumatic control networks

Specifications

• SKU / Part Number: RP670A1019
• Relay Type: SPDT (Single-Pole, Double-Throw)
• Switching Pressure: 13–17 PSI
• Fitting Size: 5/32″ Barb
• Operating Temperature: 0°F to 140°F (−18°C to 60°C)
• Operating Humidity: 5–95% RH (non-condensing)
• Housing Style: Block
• Brand: Honeywell

Why Choose the Honeywell RP670A1019?

Honeywell’s RP670A1019 delivers dependable pneumatic signal switching in demanding commercial HVAC environments. Its SPDT configuration provides versatile control logic — whether you need to block airflow, redirect it, or bleed pressure from a line. The 5/32″ barb fittings ensure a secure connection to standard pneumatic tubing, while the wide operating temperature and humidity ratings make it suitable for mechanical rooms, rooftop units, and air handling systems alike.
