Description

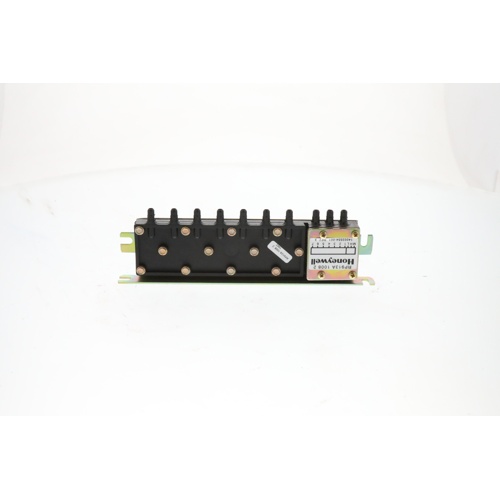

The Honeywell RP913A1008 is a precision-engineered pneumatic load analyzer designed for commercial and industrial HVAC control systems. It automatically selects either the highest or lowest branch pressure input to operate final control elements, making it an essential component in pneumatic building automation and zone control applications.
Key Features
- Selects highest and/or lowest branch pressure input to command final control elements
- 7 pneumatic inputs for multi-zone or multi-device pressure selection
- Low airflow usage of 0.04 SCFM for efficient compressed air consumption
- Barb fittings designed for 1/4″ O.D. plastic tubing connections
- Operating temperature range: 0–140°F
- Flexible mounting options: wall, inline, or panel installation
Application
The RP913A1008 is ideal for pneumatic HVAC systems where multiple branch pressure signals must be compared and the dominant signal — either the highest or lowest — must be selected to drive a final control element such as a damper actuator, valve, or other pneumatic device. This load analyzer is commonly used in variable air volume (VAV) systems, pneumatic zoning applications, and building automation systems that rely on pneumatic controls.
Mounting & Installation
- Wall mounting for surface installation
- Inline mounting for in-line pneumatic circuit integration
- Panel mounting for control panel or enclosure installation
- 1/4″ O.D. plastic tubing barb fittings for easy pneumatic connections
Specifications
- SKU: RP913A1008
- Brand: Honeywell
- Number of Inputs: 7
- Airflow Usage: 0.04 SCFM
- Operating Temperature Range: 0–140°F
- Tubing Connection: Barb fittings for 1/4″ O.D. plastic tubing
- Mounting: Wall, Inline, or Panel
- Function: Selects highest and/or lowest branch pressure input
