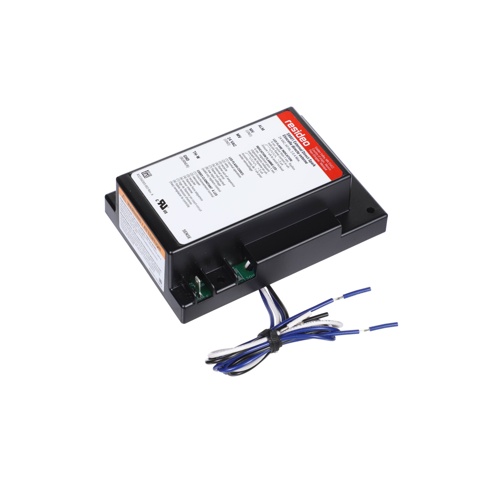

Honeywell S8801A1046 Direct Spark Ignition Module Overview
The Honeywell S8801A1046 is a Direct Spark Ignition (DSI) module engineered to provide dependable, automatic ignition control for gas-fired heating appliances. Featuring a 4-second lockout timing sequence, this module quickly detects ignition failure and shuts down the gas valve, protecting equipment and occupants from unsafe operating conditions. It is a trusted solution for OEM and replacement applications in residential and light commercial furnaces, boilers, and heating systems.
Key Features
- Direct Spark Ignition (DSI) control for automatic gas burner ignition
- 4-second trial-for-ignition lockout — rapid response to ignition failure for enhanced safety
- Initiates lockout and shuts off gas valve if flame is not established within the trial period
- Designed for use with compatible gas valves and ignition electrodes in forced-air and hydronic heating systems
- Compact, durable module construction for long service life
- Suitable for OEM replacement and field service applications
How DSI Modules Work
Direct Spark Ignition modules replace standing pilot systems by generating a high-voltage spark directly at the main burner. On a call for heat, the S8801A1046 simultaneously opens the gas valve and energizes the spark igniter. If flame is not sensed within the 4-second trial period, the module locks out, closes the gas valve, and requires a manual reset or automatic retry (depending on system configuration) before attempting ignition again. This process minimizes unburned gas accumulation and improves system efficiency.
Typical Applications
- Gas furnaces (residential and light commercial)
- Gas-fired boilers
- Rooftop units and air handlers with gas heat sections
- Unit heaters and duct furnaces
Why Choose the Honeywell S8801A1046
Honeywell’s S8801 series ignition modules are an industry standard for reliable DSI control. The 4-second lockout timing of the S8801A1046 delivers fast safety shutoff, reducing the risk of gas buildup and ensuring compliance with appliance safety requirements. Backed by Honeywell’s legacy of quality in combustion controls, this module is a dependable choice for HVAC technicians and contractors.
