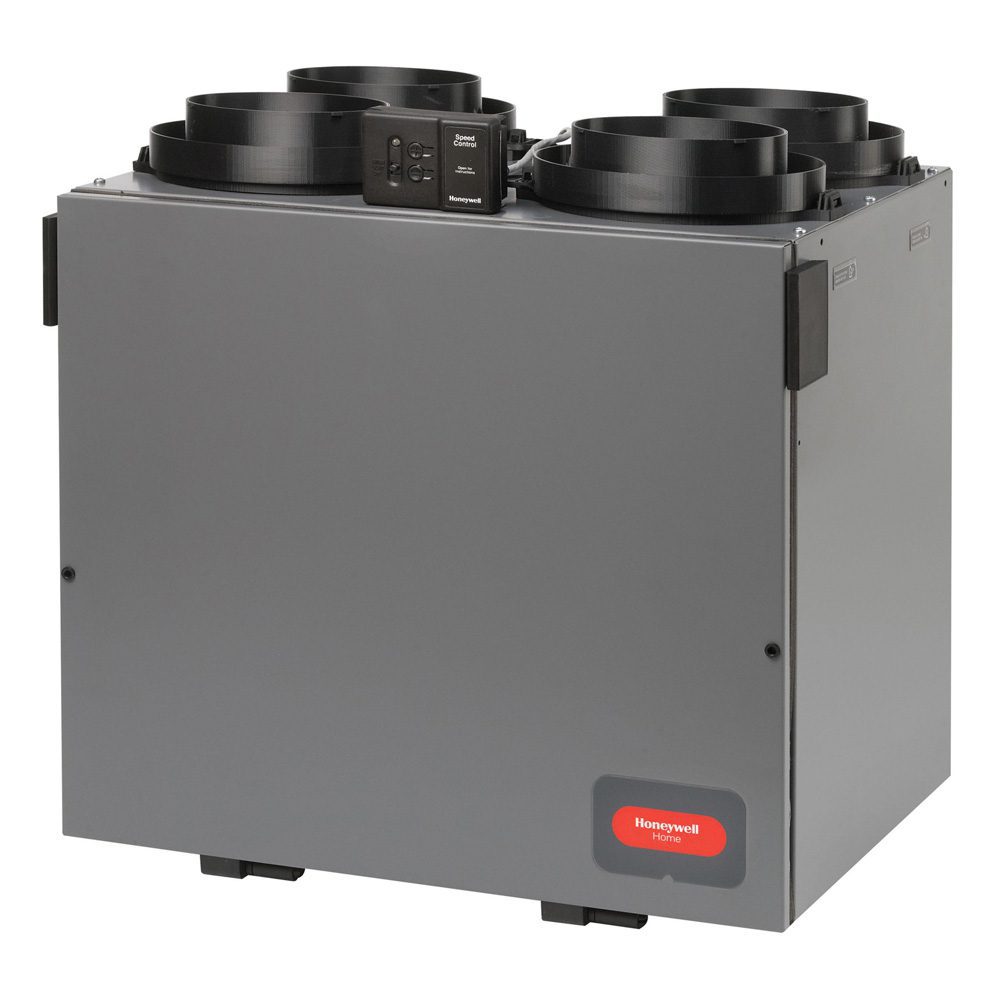

Honeywell VNT5200E1000 TrueFRESH 200CFM Energy Recovery Ventilator

BRAND: Honeywell Home SKU: VNT5200E1000

This product has been discontinued by the manufacturer

Description

A ventilation system ensures the exchange of stale air for fresh air, and the Honeywell ventilation system makes that air exchange efficiently.  Air introduced into the home through a quality ventilation system helps maintain positive pressure in the home to keep air fresher and cleaner. Ventilation also helps reduce carbon monoxide (CO) levels as well as lingering odors from smoke, food preparation, cleaning products and more.

Features and Benefits

  • Up to 4,200 ft2; 200 CFM
  • Provides humidity control of the ventilated air
  • Variable speed
  • 2 operating modes – intermittent and continuous
  • Variable speed
  • Compact installation
  • Sloped drain pan
  • Backward inclined motor blades
  • Permanent lubrication of PSC motor
  • Easy access to the control connection box
  • Detachable 6” collar system
  • Simple electronic control
  • No obstruction around the drain pan
  • Proportional defrost
  • Speed control balancing system
  • Simplified mounting system
  • Lifetime limited warranty on core
    • 10-year limited on ventilation motors
    • 5-year limited on other parts

Additional information

Dimensions

16.60" x 22.51" x 29.45"

Warranty

5 years

Maximum Square Footage

200, 4

Heat Recovery Method

Cross-flow (Enthalpic)

Maximum Static Pressure

1.0" WC

LED Functions

Solid LED indicates limits, Blinking LED indicates speed change

Ambient Relative Humidity

0% Min, 99% Max

Frequency

60 Hz

Color

Gray

Maximum Amps

1.5 A

Voltage

120V

Airflow Capacity

200 CFM

Transfers Heat

Yes

Transfers Moisture

Yes

Duct Connection Diameter

6"

Maximum Temperature Recovery

0.53

UPC 085267386616
