Description

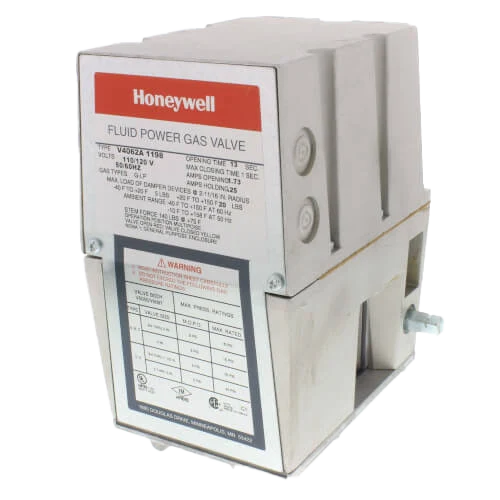

For professionals maintaining commercial/intensive HVAC or burner flames, the Honeywell V4062A1008 actuator offers dependable HI‑LO‑OFF control, rapid emergency shutoff, and visual diagnostics. With durable performance, flexible mounting, and turnkey compatibility with approved valve bodies, it’s a key component in safe and energy-efficient combustion systems.
Features:
- Provide final safety shutoff service when used with V5055 or V5097 gas valve.
- One-second maximum closing time.
- Continuously displays the valve position with a red indicator when open and a yellow indicator when closed.
- Mount in any position directly to valve bonnet with three setscrews.
- Provide final safety shutoff service when used with V5055 or V5097 Gas Valves.
- Includes damper shaft.
Specifications:
- Electrical Rating: 120 Vac
- Max Pressure (PSI): 5
- Temperature Range (F): -40°F to 150°F
- Timing: 26 seconds
- Product Type: Actuator
- Actuator Type: Low Pressure
