Description

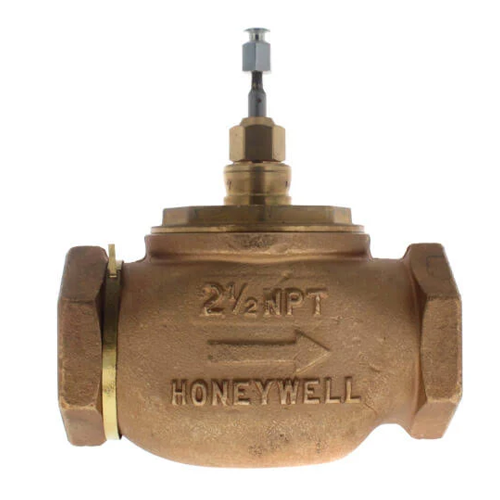

Elevate control and efficiency in your hydronic systems with the Honeywell V5011F1105 two‑way globe valve. Designed for robust performance in HVAC installations, this valve handles water, steam, or glycol (up to 50%) and boasts a substantial flow capacity (Cv) of 63, making it ideal for large commercial or industrial applications.
Specifications:
- Valve Type: Globe Valve
- Body Pattern: Two-way
- Flow Characteristic: Equal Percentage
- Controlled Medium: Chilled or hot water with up to 50% Glycol
- Connection Type: Female NPT
- Max. Safe Operating Pressure: 250 psi at 100 F water
- ANSI/ASME Rating: 150
- Maximum Differential for Quiet Water Service (psi): 20 psid
- Static Pressure Rating: ANSI 150
- Fluid Temperature Rating: 40 F to 337 F
- Materials (Body): Red Brass
- Materials (Seat): Brass
- Materials (stem) Stainless Steel
- Used with: Q5001/Modutrol IV Motor; MP953; ML6420,21A,25; ML7420/ML7421A/ML7425; ML6984/ML7984; Q5020/DCA
