Description

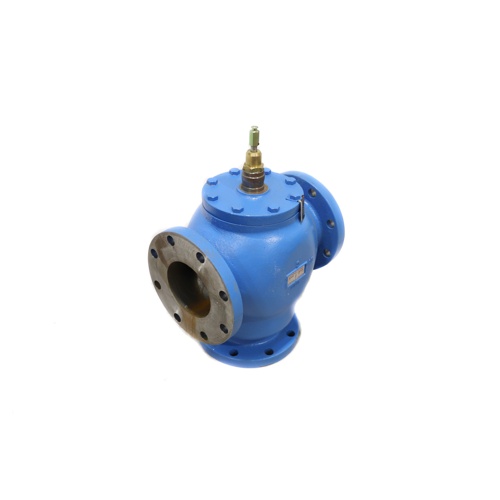

The Honeywell V5013C1035 is a heavy-duty 3-way diverting globe valve engineered for precise flow control in commercial and industrial hydronic systems. With a 5-inch 125# flanged connection and a high-capacity Cv rating of 250, this valve delivers reliable performance across a wide range of chilled water and hot water applications.
Key Features
- 3-way diverting configuration for versatile hydronic system design
- 5″ pipe size with 125# ANSI flange connections for easy installation
- 250 Cv flow coefficient for high-capacity flow management
- Linear (constant total) flow characteristic for predictable, stable control
- Stem-up-to-increase-flow action from port AB to port A
- Cast iron body for durability and long service life
- Bronze trim for corrosion resistance in hydronic environments
- Rated for chilled or hot water systems with up to 50% glycol mixtures
- 150 PSI maximum working pressure
Application
The V5013C1035 is ideal for use in large commercial HVAC systems where precise diverting control of chilled or hot water is required. Its linear flow characteristic makes it well-suited for pairing with modulating actuators in building automation and temperature control systems. The valve’s compatibility with glycol solutions up to 50% concentration makes it a dependable choice for freeze-protection applications.
Specifications
- SKU: V5013C1035
- Brand: Honeywell
- Valve Type: Globe, 3-Way Diverting
- Pipe Size: 5 inch
- Connection Type: 125# ANSI Flange
- Cv Rating: 250
- Flow Characteristic: Linear (Constant Total)
- Actuator Action: Stem Up to Increase Flow (AB to A)
- Body Material: Cast Iron
- Trim Material: Bronze
- Maximum Working Pressure: 150 PSI
- Media: Chilled water, hot water, or water/glycol mixtures up to 50% glycol
