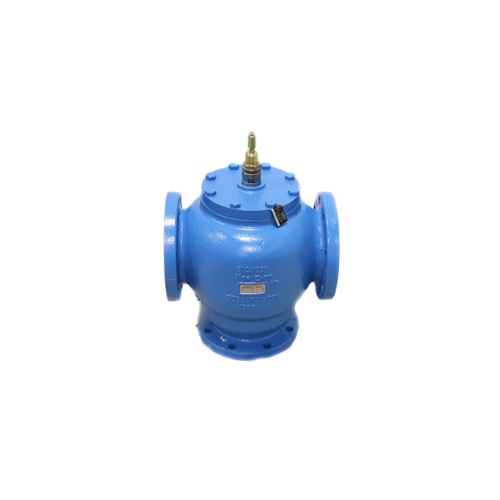

Honeywell V5013C1043 Globe Valve Overview
The Honeywell V5013C1043 is a heavy-duty 3-way diverting globe valve engineered for commercial and industrial hydronic systems. Featuring a robust cast iron body with bronze trim, this valve is built to handle the demands of both chilled and hot water applications — including systems operating with up to 50% glycol concentration. With a 6″ 125# flanged connection and an impressive Cv rating of 360, it delivers high-capacity flow control suited for large-scale HVAC and building automation installations.
Key Features
- 3-way diverting configuration for precise flow management between circuits
- 6″ pipe size with 125# flange end connections for secure, leak-resistant installation
- 360 Cv flow coefficient for high-volume hydronic applications
- Linear (constant total) flow characteristic for predictable, stable control
- Stem-up-to-increase-flow design: stem up increases flow from port AB to port A
- Cast iron body construction for durability and long service life
- Bronze trim for corrosion resistance in hydronic environments
- Compatible with chilled water and hot water systems
- Supports glycol solutions up to 50% concentration
- Maximum operating pressure: 150 PSI
Applications
- Commercial and industrial chilled water systems
- Hot water heating systems
- Glycol-based hydronic systems (up to 50% glycol)
- Large-scale HVAC building automation and control applications
- Fan coil units, air handling units, and central plant piping
Specifications
- SKU / Model: V5013C1043
- Valve Type: Globe, 3-Way Diverting
- Pipe Size: 6″
- End Connection: 125# Flange
- Cv Rating: 360
- Flow Characteristic: Linear (constant total)
- Actuator Action: Stem up to increase flow from AB to A
- Body Material: Cast Iron
- Trim Material: Bronze
- Maximum Pressure: 150 PSI
- Fluid Compatibility: Chilled or hot water, up to 50% glycol
