Description

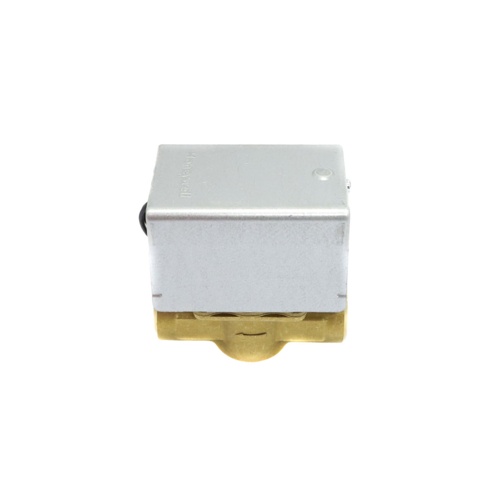

The Honeywell V8043J1029 is a two-way, normally open zone valve engineered for reliable hydronic and low-pressure steam heating systems. Featuring a spring-return-to-open design, this valve automatically returns to the open position upon power loss, making it a dependable choice for fail-safe zoning applications. Its rugged brass body, stainless steel stem, and brass seat deliver long-lasting corrosion resistance in demanding hydronic environments.
Key Features
- Two-way, normally open configuration with spring return to open
- 1/2″ NPT connections for straightforward pipe integration
- 24VAC operating voltage for compatibility with standard zone control systems
- Brass body construction for durability and corrosion resistance
- Stainless steel stem for extended service life
- Brass seat for reliable sealing performance
- Rated for low-pressure steam applications
- 20 lb maximum closeoff force
- 18″ lead wire for easy electrical connections
Specifications
- SKU: V8043J1029
- Valve Type: Two-Way, Normally Open
- Pipe Connection: 1/2″ NPT
- Actuator Voltage: 24VAC
- Operation: Spring Return to Open
- Body Material: Brass
- Stem Material: Stainless Steel
- Seat Material: Brass
- Max Closeoff: 20 lb
- Lead Wire Length: 18″
- Application: Low-Pressure Steam & Hydronic Heating
Applications
- Residential and light commercial hydronic heating systems
- Low-pressure steam heating systems
- Zone control in hot water baseboard and radiant systems
- Fail-safe zoning where normally open operation is required
