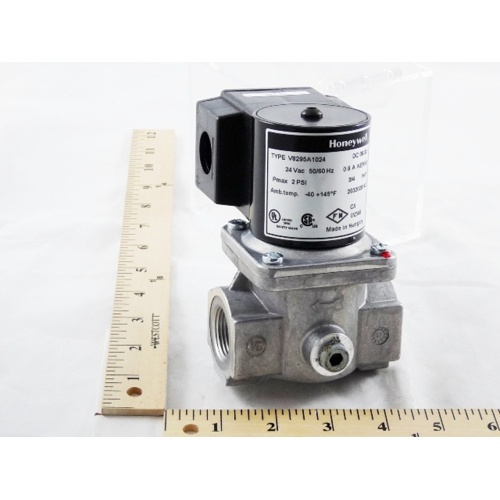

Honeywell V8295A1024 Solenoid Gas Valve Overview
The Honeywell V8295A1024 is a reliable, single-body solenoid gas valve engineered for precise on/off gas flow control in a wide range of commercial and residential heating applications. Operating on a 24VAC power supply, this valve features a straight-through, non-offset flow path and a 3/4″ pipe size, making it a versatile fit for many burner and appliance installations.
Key Features
- Operating Voltage: 24VAC
- Pipe Size: 3/4″
- Flow Capacity: 645 CFH
- Pressure Rating: 2 PSI maximum inlet pressure
- Flow Configuration: Straight through, non-offset design
- Electrical Connection: Screw terminals for secure, easy wiring
- Inlet/Outlet Pressure Tapping: 1/4″ NPT for pressure measurement and testing
- Mounting Orientation: Vertical to 90 degrees from vertical for flexible installation
Compatible Gas Types
- Natural Gas
- Manufactured Gas
- Mixed Gas
- LP (Liquefied Petroleum) Gas
- Air
Applications
The V8295A1024 is well suited for use in gas-fired heating equipment, commercial burners, boilers, and other appliances requiring dependable solenoid-actuated gas shutoff. Its broad gas compatibility and generous 645 CFH flow capacity make it adaptable across a variety of system sizes and fuel types.
Installation Notes
- Designed for straight-through piping — no offset required
- Screw terminals simplify field wiring connections
- 1/4″ NPT pressure tappings at inlet and outlet allow easy manometer or pressure gauge hookup for commissioning and service
- Mounting flexibility from vertical to 90 degrees from vertical accommodates a range of equipment configurations
