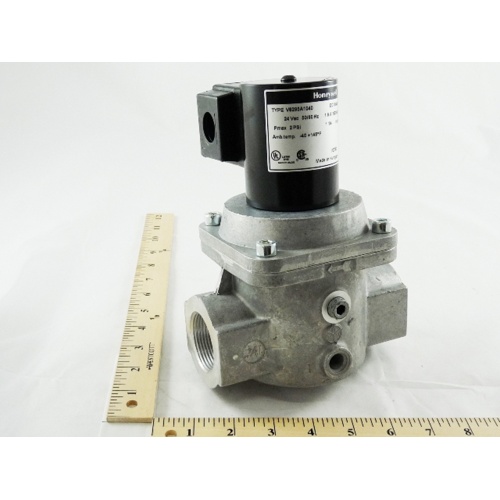

Honeywell V8295A1040 Solenoid Gas Valve Overview
The Honeywell V8295A1040 is a heavy-duty solenoid gas valve engineered for reliable on/off gas control in a wide range of commercial and residential heating applications. Rated at 24VAC and featuring a 1-1/4″ connection size, this valve delivers a robust 1450 CFH capacity with a 2 PSI pressure rating, making it well-suited for high-demand burner systems.
Multi-Gas Compatibility
The V8295A1040 is designed to handle a broad spectrum of gas types, providing maximum installation flexibility:
- Air
- Natural Gas
- Manufactured Gas
- Mixed Gas
- LP (Liquefied Petroleum) Gas
Key Features & Specifications
- Operating Voltage: 24VAC
- Connection Size: 1-1/4″
- Flow Capacity: 1450 CFH
- Pressure Rating: 2 PSI
- Flow Configuration: Straight-Through, Non-Offset
- Electrical Connection: Screw Terminals for secure, reliable wiring
- Inlet/Outlet Pressure Tapping: 1/4″ NPT for easy pressure measurement and testing
- Mounting Orientation: Vertical to 90 Degrees, offering flexible installation options
Design & Installation Benefits
The straight-through, non-offset body design simplifies piping runs and reduces pressure drop across the valve. The 1/4″ NPT inlet and outlet pressure tapping ports allow technicians to quickly connect test gauges for commissioning and troubleshooting without additional fittings. Screw terminals provide a clean, vibration-resistant electrical connection. The valve’s ability to mount vertically or up to 90 degrees from vertical gives installers the flexibility needed in tight mechanical rooms and equipment cabinets.
Ideal Applications
- Commercial and industrial burner systems
- Boilers and furnaces
- Unit heaters and rooftop units
- Any system requiring dependable solenoid-actuated gas shutoff
