Description

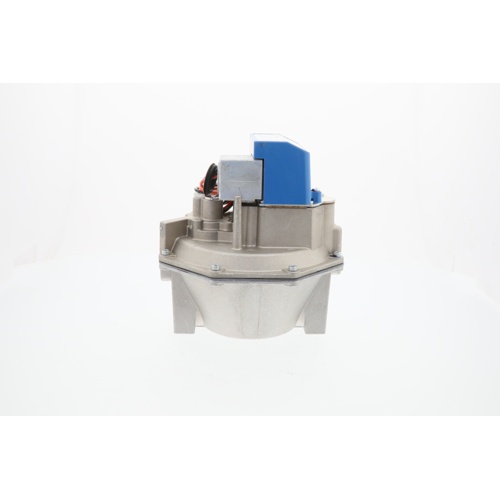

The Honeywell V8943C1018 is a single-stage, pressure-regulating gas valve engineered for reliable LP gas pressure management in commercial and residential heating applications. Designed for straightforward integration into 24VAC control systems, this 1″ valve delivers precise, consistent downstream pressure regulation with factory-set and field-adjustable setpoints.
Key Features
- Single-stage pressure regulating valve for LP (liquefied petroleum) gas service
- 24VAC operating voltage for compatibility with standard HVAC control circuits
- 1″ pipe connection for easy installation in common gas line configurations
- Factory-set high fire regulator at 10″ water column (W.C.) for out-of-the-box performance
- Field-adjustable high fire regulator setpoints ranging from 8.8″ to 11.5″ W.C.
- Generous flow capacity of 195–650 CFH to support a wide range of appliance inputs
- Controlled valve opening time of 3–25 seconds for smooth, safe gas delivery
- Fast valve closing time of 2 seconds maximum for rapid shutoff and system safety
Specifications
- Model: V8943C1018
- Fuel Type: LP Gas
- Voltage: 24VAC
- Pipe Size: 1″
- Stages: Single Stage
- Factory Setting: 10″ Water Column
- High Fire Regulator Setpoint Range: 8.8″ – 11.5″ Water Column
- Capacity: 195 – 650 CFH
- Valve Opening Time: 3 – 25 Seconds
- Maximum Valve Closing Time: 2 Seconds
Applications
- Commercial and residential LP gas heating systems
- Furnaces, boilers, and unit heaters requiring precise gas pressure regulation
- Systems requiring controlled valve opening and fast-closing safety shutoff
- Replacement or upgrade for existing single-stage LP gas pressure regulating valves
