Description
Overview

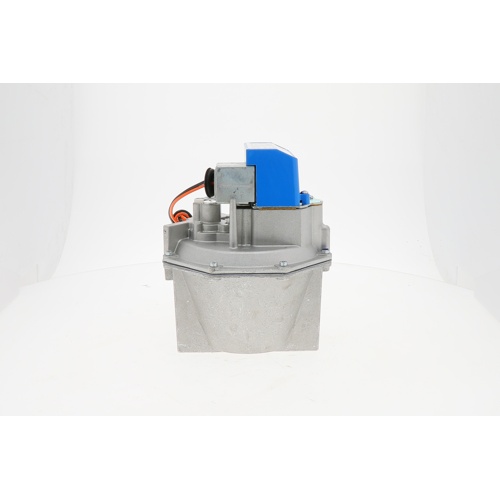

The Honeywell V8943N1039 is a single-stage pressure regulating gas valve engineered for reliable, precise control of natural gas flow in commercial and industrial burner applications. Operating on a 24VAC power supply and sized for a 1-1/2″ pipe connection, this valve delivers consistent downstream pressure regulation across a broad capacity range — making it an ideal choice for high-demand heating systems.
Key Specifications
- Model: V8943N1039
- Valve Type: Single Stage Pressure Regulating Valve
- Gas Type: Natural Gas
- Voltage: 24VAC
- Pipe Size: 1-1/2″
- Capacity Range: 780–2,300 CFH
- High Fire Regulator Setpoints: 3″ – 4.5″ Water Column
- Factory Set Outlet Pressure: 3.5″ Water Column
- Maximum Valve Opening Time: 6 Seconds
- Maximum Valve Closing Time: 2 Seconds
Features & Benefits
- Single-stage design simplifies installation and reduces system complexity
- Factory-set outlet pressure of 3.5″ WC for immediate, out-of-the-box deployment
- Field-adjustable high fire regulator setpoints (3″ – 4.5″ WC) for application flexibility
- Wide capacity range of 780–2,300 CFH accommodates a variety of commercial burner configurations
- Fast 6-second maximum opening time and 2-second maximum closing time for responsive system control
- 24VAC operation integrates seamlessly with standard commercial HVAC and burner control systems
- 1-1/2″ pipe connection suits medium-to-large commercial gas train assemblies
- Engineered by Honeywell — a trusted name in gas controls and combustion safety
Typical Applications
- Commercial and industrial burner systems
- Boiler gas trains requiring pressure regulation
- Rooftop units and large heating appliances using natural gas
- Systems requiring precise downstream pressure control at high flow rates
